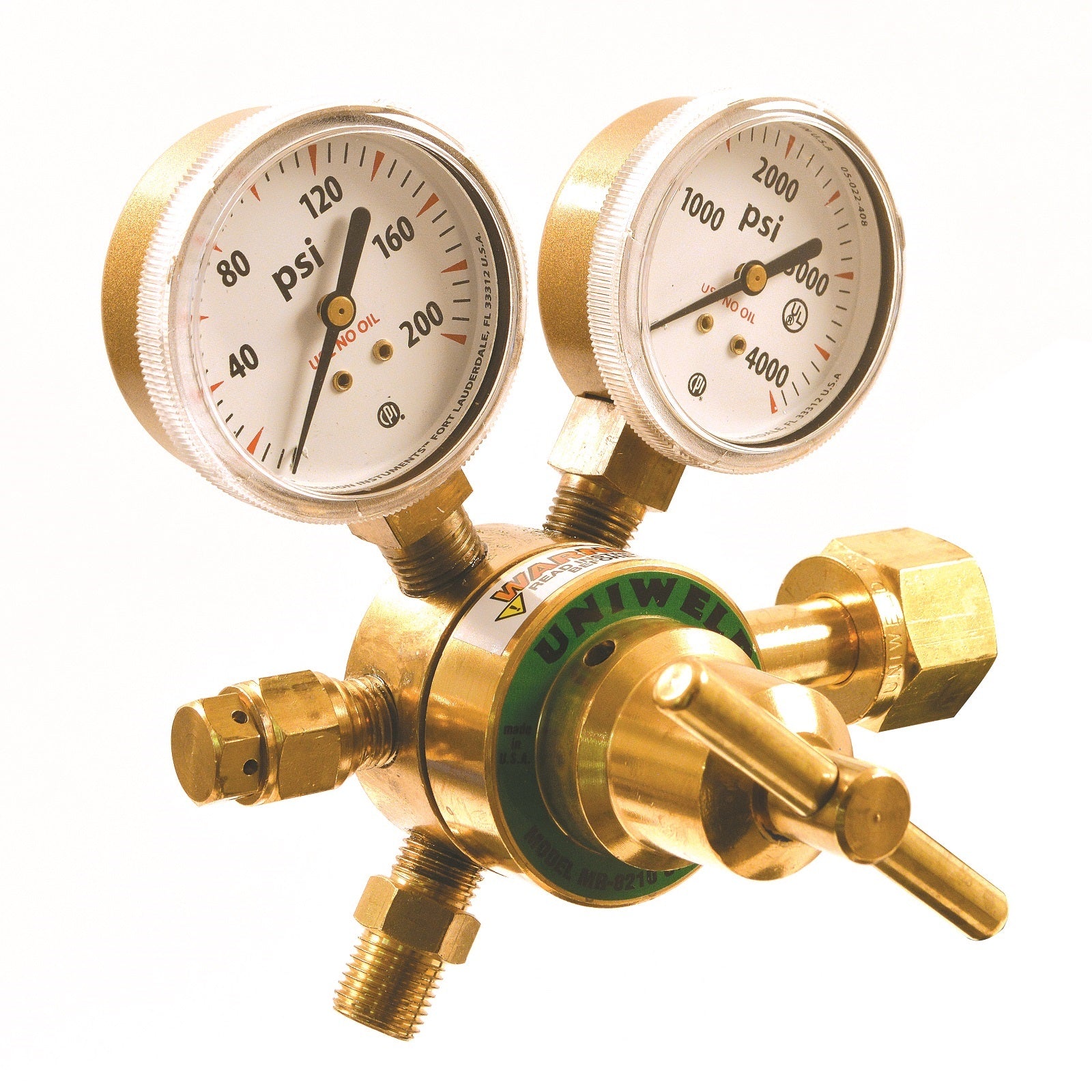

Uniweld MR8210 Regulator LD 1-Stage Oxy CGA540

Product Description

The UNIWELD MR8210 is a Regulator LD 1-Stage Oxy CGA540. It features a T-handle for smooth flow adjustment and a porous bronze inlet filter. The regulator's body and bonnet are made of machined brass. It has a single stage and is compatible with oxygen.

• Features a machined brass body & bonnet
• Easy-to-read single scale 2" gauges
• T-handle for smooth flow adjustment

Product Highlights

This single-stage oxygen regulator is designed for medium/standard duty and provides an outlet pressure of up to 80 psig.

Product Information

Standard Information

• Brand: UNIWELD
• Manufacturer Part Number: MR8210
• Country of Origin: United States

Technical Specifications

• Item: Regulator LD 1-Stage Oxy CGA540
• CGA Number: CGA 540
• Control Type: T-Handle
• Body Material: Brass
• Overall Depth: 4.5 in
• Overall Width: 7 in
• Gauge Diameter: 2 in
• Overall Height: 5.5 in
• Bonnet Material: Brass
• Filter Material: Bronze
• Number of Stages: Single Stage
• Regulator Series: MR82
• Hose Fitting Size: B
• Outlet Connection: “B” (RH) 9/16“-18 (M)
• Diaphragm Material: Neoprene
• Compatible Gas Type: Oxygen
• Outlet Connection Size: 9/16"-18
• Inlet Connection Gender: Male
• Outlet Thread Direction: Right Hand
• Inlet Pressure (Maximum): 3,000 psig
• Outlet Connection Gender: Male
• Outlet Pressure (Maximum): 80 psig
• Outlet Pressure (Minimum): 5 psig
• CGA Inlet: Oxygen 540
• Delivery PSIG: 5-80
• MPN: MR8210
