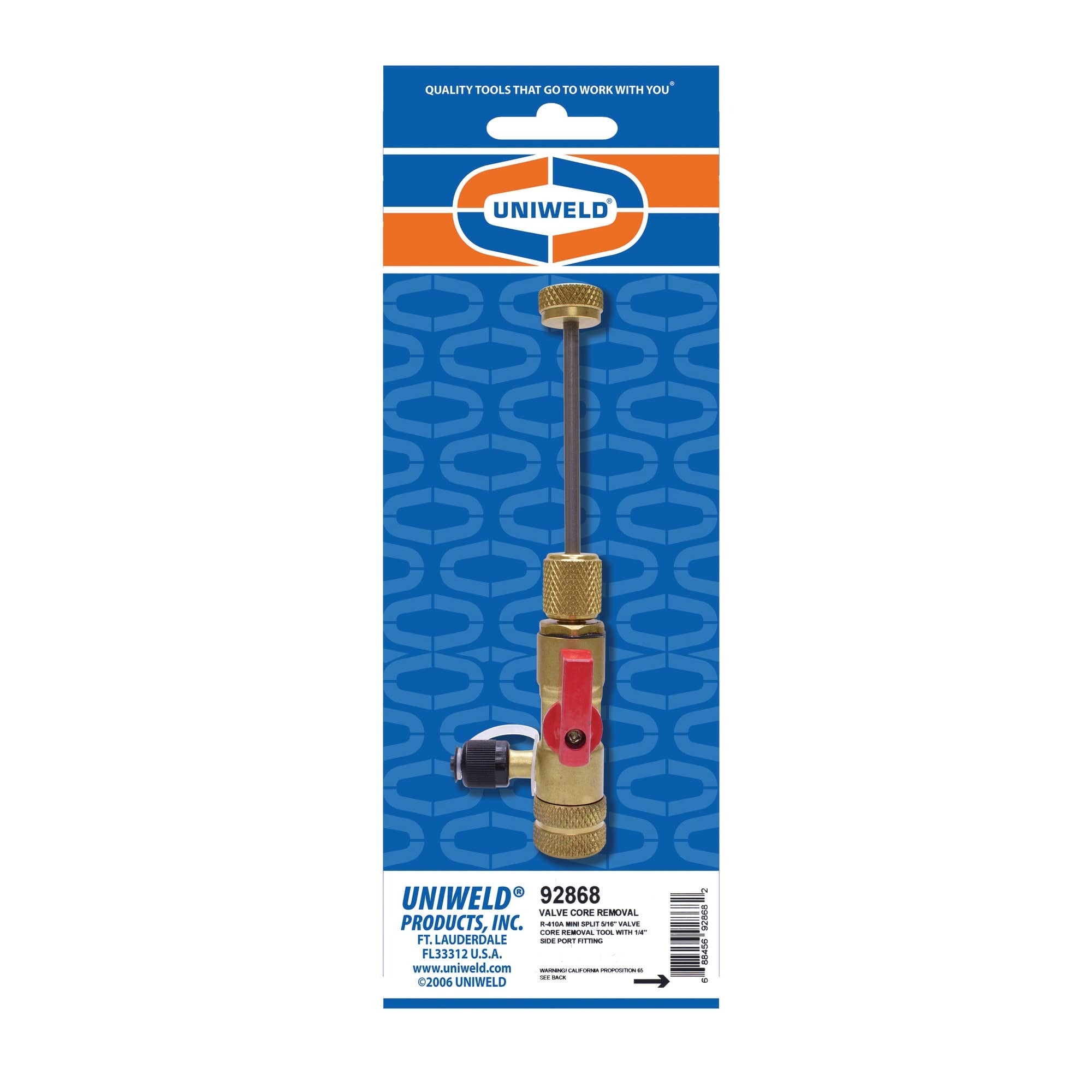

Uniweld 92868 Valve Core Removal Tool Mini Split R-410A

Product Description

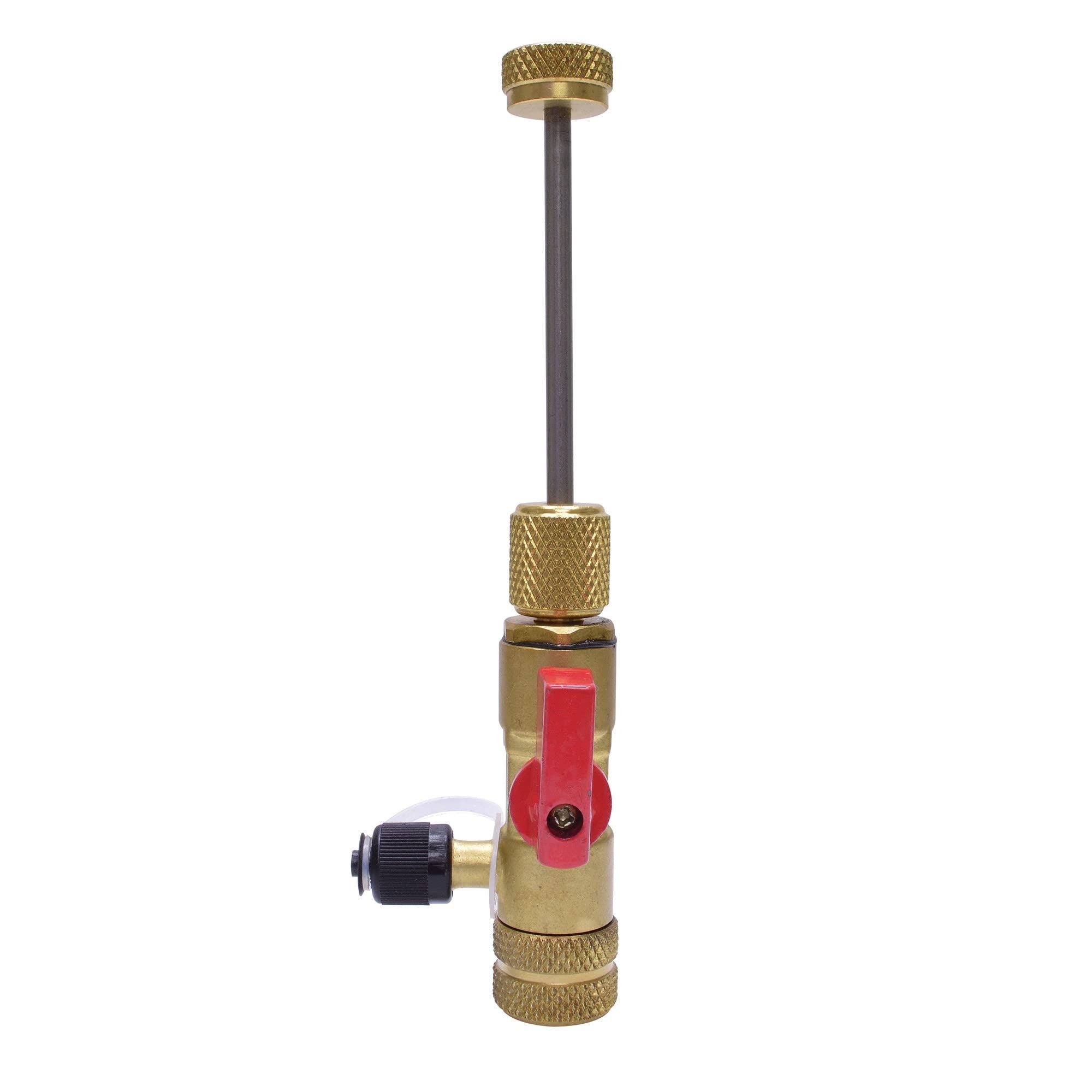

The UNIWELD 92868 is a valve core removal tool engineered for R-410A mini split systems, allowing technicians to remove and replace valve cores without losing the system refrigerant charge. The tool features a 3/8 inch full-flow ball valve with a positive 1/4-turn on/off action and 360-degree swivel for easy access to system service valves. A 5/16 inch valve core fitting and a 1/4 inch side port fitting are included. Compatible with all common refrigerants, this tool is built for HVAC technicians performing recovery, evacuation, and recharge work on mini split and other refrigerant systems.

This tool is suited for residential and light commercial HVAC service work, particularly on mini split systems that use R-410A or other refrigerants. It is designed for use during refrigerant recovery, system evacuation, and recharge procedures where unrestricted line flow speeds up the service process. The 1/4 inch side port fitting allows connection to standard manifold gauge sets and recovery equipment during core removal operations.

Key Features

• Removes and replaces valve cores without losing system refrigerant charge
• 3/8 inch full-flow ball valve with positive 1/4-turn on/off action
• 360-degree swivel body for easy access to service valves in tight spaces
• 5/16 inch valve core fitting sized for R-410A mini split service ports
• 1/4 inch side port fitting for connection to manifold gauges or recovery equipment
• Compatible with all refrigerants including R-410A

Compatibility

Compatible with all refrigerants, including R-410A. Designed for use on mini split system service valves with 5/16 inch valve cores.

Installation Notes

This tool is installed and operated by licensed HVAC technicians in accordance with EPA Section 608 refrigerant handling regulations. Before attaching the tool, verify the system service valve is closed and confirm the side port is capped or connected to recovery or evacuation equipment before opening the ball valve. Never open the ball valve without a hose or cap securely attached to the side port. Follow all applicable safety procedures for pressurized refrigerant systems when performing core removal or insertion.
