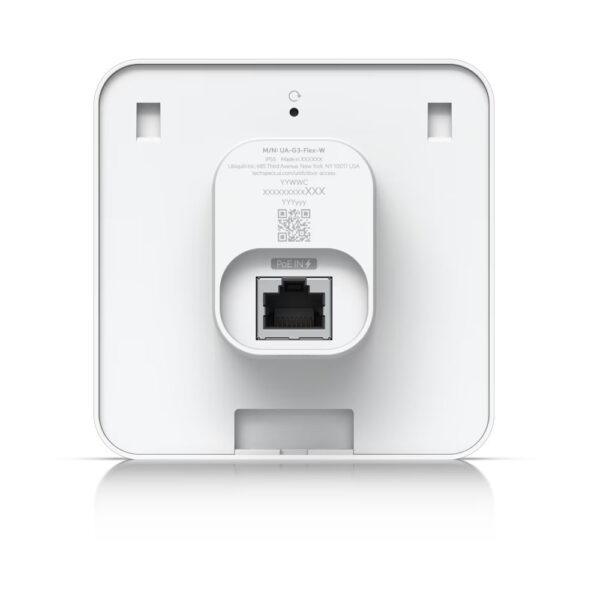

Ubiquiti UA-G3-FLEX-W UniFi Access G3 Reader Flex 5 W

Product Description

The Ubiquiti UA-G3-FLEX-W UniFi Access Reader Flex implements access control, security, and authentication at entryways. This reader utilizes MIFARE 13.56 MHz technology providing a 1.18" read range of NFC cards and keyfobs. It features a built-in speaker, pin access via keypad, Apple Touch Pass, mobile unlock, and handwave request-to-exit functionality. It is housed in an IP55-rated enclosure for protection from water and dust.

• NFC Card Reader with Keypad
• MIFARE 13.56 MHz Technology
• 1.18" Read Range
• Request-to-Exit (RTE) Functionality

Product Highlights

The UniFi Access Reader Flex is a third-generation NFC card reader with an integrated keypad and Apple Touch Pass support, suitable for residential and commercial installations.

Product Information

Standard Information

• Brand: UBIQUITI
• Manufacturer Part Number: UA-G3-FLEX-W

Technical Specifications

• Compatibility: Ubiquiti Networks UniFi Access Various
• NFC Credentials: Apple Touch Pass, Wallet
• Wireless: Bluetooth 4.1
• Mobile App Compatible: Yes: Android & iOS
• App Name: UniFi Access
• Power Source: PoE
• DC Input Power: 44 to 57 VDC
• Power Consumption: 5 W
• Mounting: Wall
• Material of Construction: Polycarbonate, Glass, Aluminum Alloy
• Environmental Resistance: Dust/Water-Resistant (IP55)
• Certifications: CAN, CE, FCC, IC, UL
• Operating Conditions: -22 to 140°F / -30 to 60°C at 5 to 90% Humidity
• NDAA Compliant: Yes
• Weatherproofing: IP55
• Indoor and Outdoor Use: Yes
• Networking Interface: (1) 10/100 MbE RJ45 port
• Connectivity: BLE 4.1 NFC
• Supported Voltage Range: 44–57V DC
• ESD/EMP Protection: Air: ± 15kV, contact: ± 8kV
• Sensors: (12) Capacitive buttons
• Speaker: Yes
• LEDs: R/G/B/W
• Button: (1) Factory reset
• NFC Frequency: 13.56 MHz
• NFC Read Range: < 30 mm (1.18”)
• NFC Technology: ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0
• Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)
• Ambient Operating Humidity: 5 to 90% noncondensing
• Management Application: Access
