Product Description

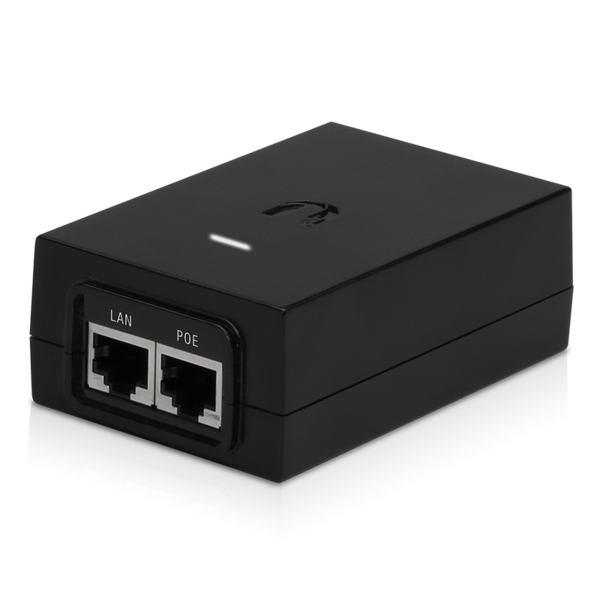

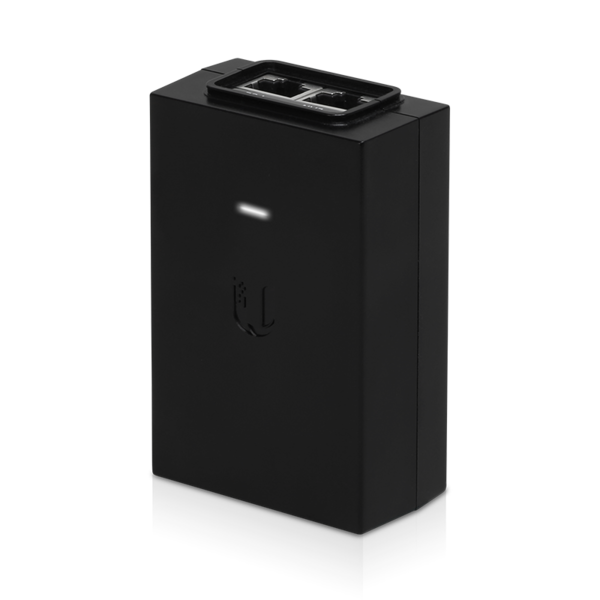

The Ubiquiti POE-50-60W is a Power over Ethernet (PoE) adapter that powers various Ubiquiti products. Compatible with most Ubiquiti PoE devices, including airFiber, airMAX, EdgeMAX, mFi, UniFi AP, UniFi Protect / airVision, UniFi LED, and UFiber. It provides earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.
- Provides Earth Grounding and Surge Protection
- Helps Protect Against ESD Events
- Powers Ubiquiti PoE Devices
Product Highlights
This PoE adapter is designed to safeguard Ubiquiti PoE devices from power surges and electrostatic discharge.
Product Information
Standard Information
-
Brand: UBIQUITI
-
Manufacturer Part Number: POE-50-60W
-
Country of Origin: +1
Technical Specifications
-
Brand Name: Ubiquiti
-
Manufacturer: Ubiquiti Inc.
-
Product Type: PoE Adapter
-
Product Model: POE-50-60W
-
ADI Part Number: KX-POE5060W
-
Protection Type: Clamping Protection, Surge Protection
-
Maximum Frequency: 60 Hz
-
Minimum Frequency: 50 Hz
-
Maximum Input Current: 1.3 A
-
Minimum Input Current: 0.75 A
-
Power over Ethernet (PoE): Yes
-
Operating Temperature (T-T): 0-40°C
-
Storage Temperature (T-T): -30-70 °C
-
Operating Relative Humidity (H-H): 35-95
-
Model Name: UBIPOE5060W
-
Number of Ports: 2
-
Output Voltage: 50VDC @ 1.2A
-
Rated Voltage: 100-240VAC @ 50/60Hz
-
Input Current: 1.3A @ 120VAC, 0.75A @ 230VAC
-
Inrush Current: <100A Peak @120VAC, <200A Peak @ 230VAC
-
Efficiency: 0.85
-
Output Ripple: 1% Max.
-
Switching Frequency: 65 kHz
-
Line Regulation: ≤ 3%
-
Load Regulation: ≤ 5%
-
4-Pair Powering: Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)
-
Operating Temperature: 0 to 40° C (32 to 104° F)
-
Storage Temperature: -30 to 70°C (-22 to 158° F)
-
Operating Humidity: 35 to 95% Noncondensing
-

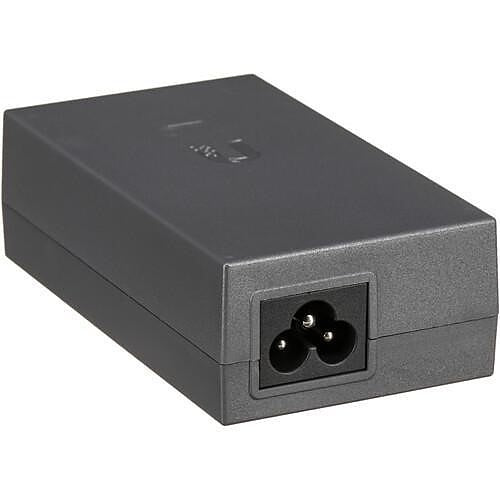

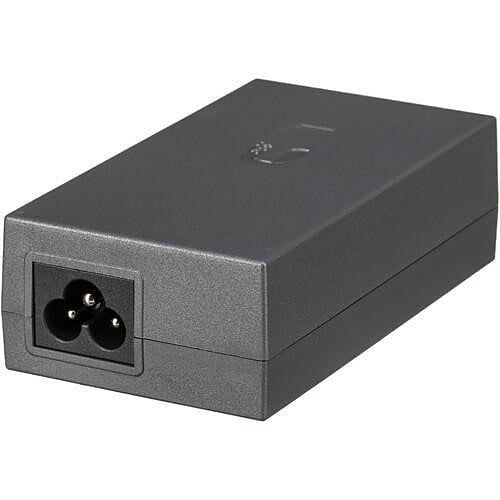

AC Connector: IEC-320 C6
-

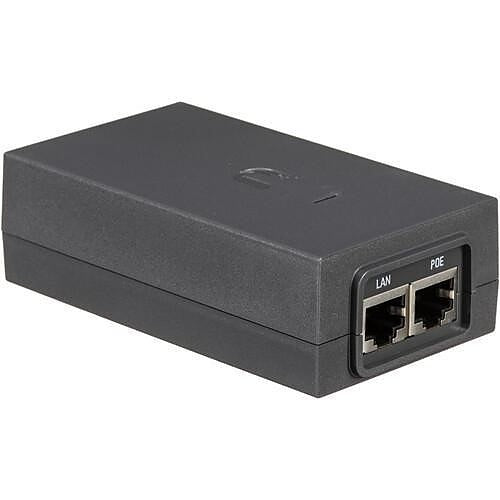

Data IN / POE: RJ45 Shielded Socket
-
Surge Protection: Difference and Common Mode
-
Clamping Protection: 11V Data, 60V Power
-
Max. Surge Discharge: 1500A (8/20 μs) Power
-
Peak Pulse Current: 36A (10/1000 μs) Data
-
Shunt Capacitance: <5 pF data
-
Response Time: <1 ns
-
Certifications: CE, FCC, IC, UL
