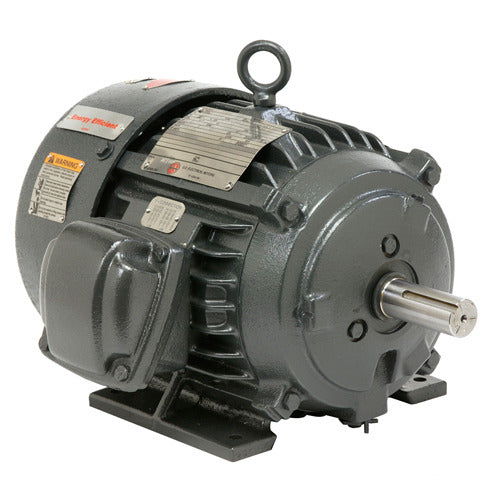

U.S. Motors X15P2B Explosion Proof Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors X15P2B is an explosion-proof motor designed for demanding applications. This three-phase motor offers a powerful fifteen horsepower and operates at one thousand eight hundred RPM. It is suitable for use with 230/460 voltage and features a totally enclosed fan-cooled (TEFC) design, making it ideal for harsh environments.

• Explosion Proof Motor Application
• Continuous Duty Operation
• 254T Frame Size

Product Highlights

This motor is engineered for safety and performance in explosive environments. The corrosion-resistant, cast iron construction ensures durability, while the rigid base mount provides stability during operation.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: 101400948

Technical Specifications

• Power: 15 hp
• Voltage Rating: 230/460 V
• Full Load RPM: 1800
• Frame Size: 254T
• Full Load Amperage: 37/18.3 A
• Duty Cycle: Continuous Duty
• Insulation Class: F
• Weight: 316 lb
