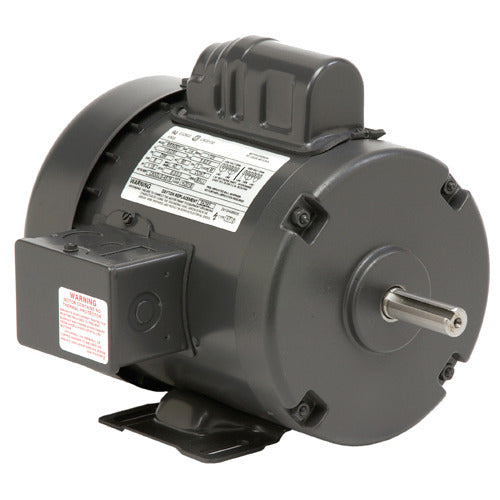

U.S. Motors T1CM2JH General Purpose Single Phase TEFC Rigid Base Motor

Product Description

The U.S. Motors T1CM2JH is a general purpose single phase motor, suitable for a variety of applications. This motor features a totally enclosed fan cooled design, which helps in protecting it from dust and moisture. It operates at a power rating of one horsepower and a speed of one thousand eight hundred revolutions per minute.

• 1 horsepower output
• Designed for single phase operation
• Totally enclosed fan cooled (TEFC) construction

Product Highlights

This motor is ideal for applications requiring reliable performance and efficiency. It is mounted on a rigid base to enhance stability and reduce vibrations during operation.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: T1CM2JH

Technical Specifications

• HP: 1
• Phase: Single Phase
• RPM: 1800
• Duty: Continuous Duty
• Frame: 56, 56H
• Voltage Rating: 115/208-230
• Enclosure: TEFC
• Service Factor: 1.15
• Poles: 4
• Full Load Efficiency: 70%
• Full Load Amps: 14/6.9-7
• Weight: 40.0 lb
• Thermal Protection: Manual Reset
• Insulation Class: B
• C Dimension: 12.3 in
