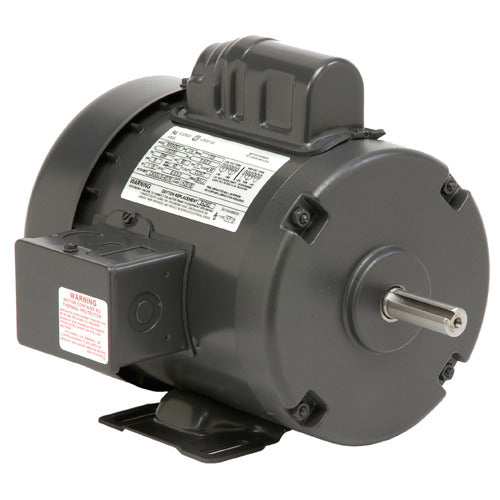

U.S. Motors T1CM2J14 General Purpose Single Phase TEFC Rigid Base Motor

Product Description

The U.S. Motors T1CM2J14 is a general-purpose motor designed for various applications. With a power rating of one horsepower, this single-phase motor operates at an efficient speed of one thousand eight hundred revolutions per minute. It features a Totally Enclosed Fan Cooled (TEFC) design, ensuring that the internal mechanisms remain protected from dust and moisture. The rigid base mount offers stability for different installation setups, making it suitable for both residential and commercial uses.

• Single Phase Operation
• Voltage Rating: 115/208-230
• TEFC Design for Enhanced Durability

Product Highlights

This motor is ideal for a variety of tasks, such as powering fans, pumps, and compressors, helping to meet different fluid handling and ventilation needs.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: T1CM2J14

Technical Specifications

• Enclosure: TEFC
• Thermal Protection: Manual Reset
• C Dimension: 12.7 inches
• Frequency: 60 Hz
• Service Factor: 1.15
• Motor Application: General Purpose
• Voltage Rating: 115/208-230, 230, 115, 208
• Full Load Amps: 14/6.9-7
• Poles: 4
• Insulation: Class B
• RPM: 1800
• Design: L
• HP: 1
• Full Load Efficiency: 70%
• Duty: Continuous Duty
• Mounting: Rigid Base
• Frame: 143T
• Weight: 36.0 lbs
