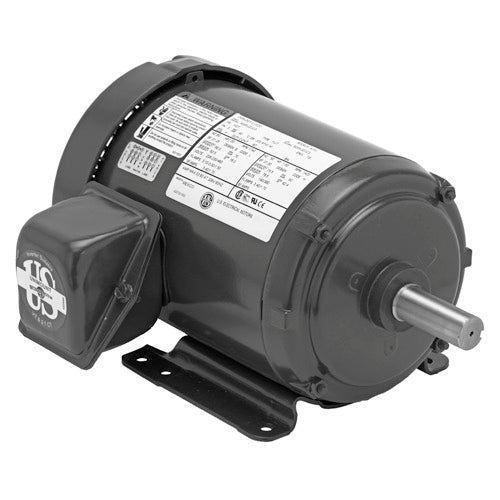

U.S. Motors S3P1A General Purpose Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors S3P1A is a three-phase AC motor designed for general purpose industrial applications. This motor operates at three horsepower and a speed of three thousand six hundred RPM. It features a TEFC (Totally Enclosed Fan Cooled) design that protects against dirt and moisture.

• Three horsepower rating
• Rated for continuous duty
• Voltage range of 208-230/460

Product Highlights

The S3P1A motor is suitable for various applications, including fans, compressors, and pumps. It offers a robust construction with rolled steel frame materials, ensuring durability in demanding conditions.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: S3P1A

Technical Specifications

• Mounting: Horizontal - Footed
• Frame: 182T
• Voltage Rating: 208-230/460
• Full Load RPM: 3600
• Full Load Efficiency: 86.5%
• Full Load Amps: 8.4-7.7/3.9
• Phase: Three Phase
• Weight: 50.0 LB
