U.S. Motors HD2V3BC General Purpose Three Phase TEFC Horizontal - Footed Motor

Product Description

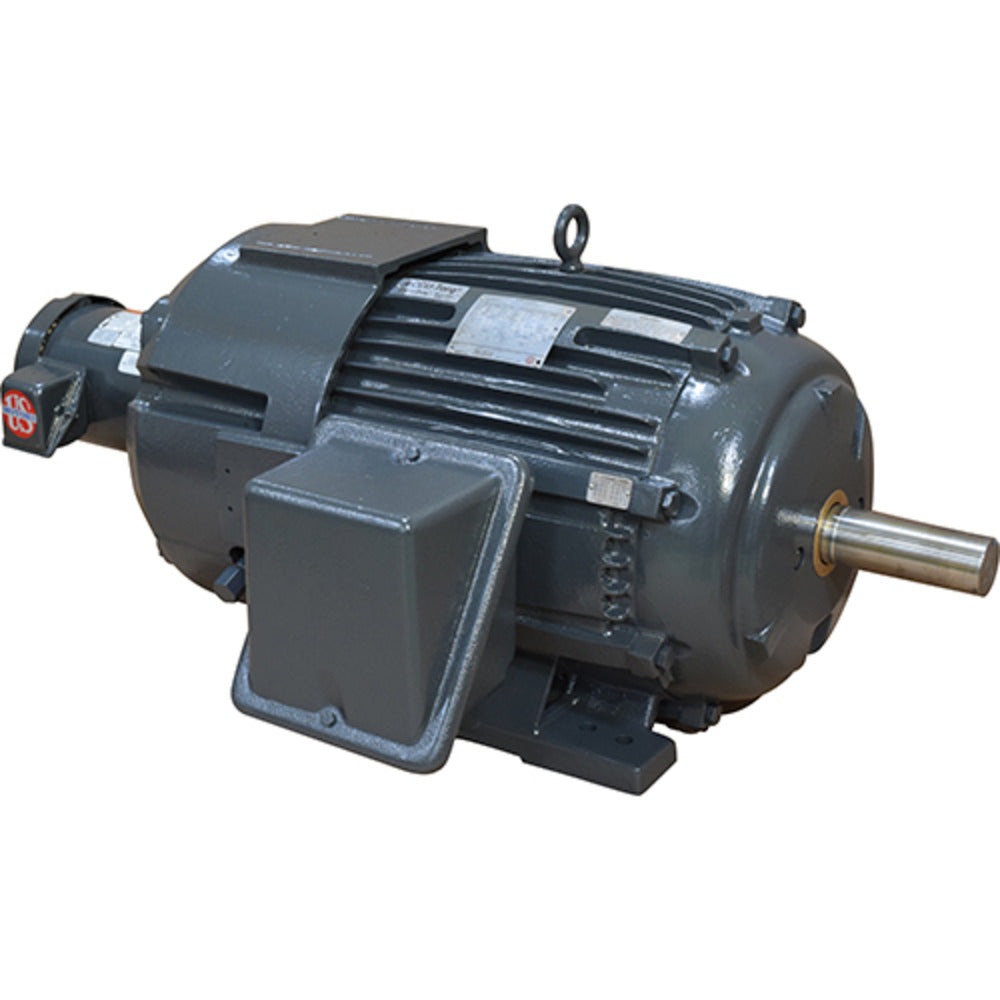

The U.S. Motors HD2V3BC is a general-purpose three-phase footed motor designed for various applications. This motor operates at two horsepower and features a robust construction that makes it ideal for continuous use in demanding environments. The TEFC (Totally Enclosed Fan Cooled) design ensures efficient cooling and protection from dust and moisture, enhancing durability.

• Rated at two horsepower with a full load RPM of twelve hundred
• Constructed with cast iron for strength and stability
• Compatible with both 230 and 460 voltage ratings

Product Highlights

This motor is suitable for HVAC applications, industrial machinery, and general use where a reliable power source is needed. With a full load efficiency of eighty-eight point five percent, it optimizes energy use while maintaining performance, making it an effective choice for trade professionals.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: HD2V3BC

Technical Specifications

• Enclosure: TEFC
• Full Load Efficiency: 88.5%
• Frame Material: Cast Iron
• Motor Application: General Purpose
• Full Load Amps: 6.2/3.1
• Phase: Three Phase
• Mounting: Horizontal - Footed
• Hz: 60
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Duty: Continuous Duty
• Poles: 6
• Full Load RPM: 1175
• Voltage Rating: 230/460
• Weight: 110 LB
