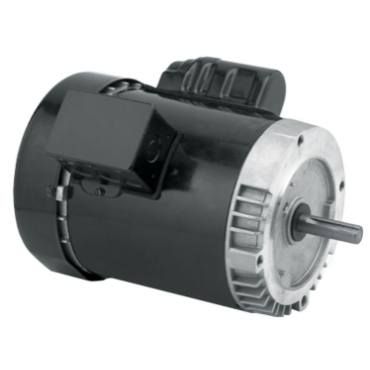

U.S. Motors EC1004B General Purpose Single Phase ODP C-Face/Base Motor

Product Description

The U.S. Motors EC1004B is a general purpose single phase ODP C-Face/base motor. This motor has a power rating of one horsepower and operates at a speed of one thousand eight hundred rpm. It is designed for various applications requiring reliable performance in continuous duty. The voltage rating is 115/208-230 volts, making it versatile for different setups.

• 1 horsepower power rating
• 1800 rpm operational speed
• Open drip proof (ODP) design

Product Highlights

This motor is suitable for general purpose applications, providing dependable operation and ease of installation.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: EC1004B

Technical Specifications

• Thermal Protection: Automatic Reset
• Insulation Class: B
• Full Load Amps: 15.2/7.7-7.6
• Enclosure Designation: ODP - Open Drip Proof
• Poles: 4
• Voltage Rating: 115/208-230, 230, 115, 208
• Frame: 56C
• Service Factor: 1.15
• Duty: Continuous Duty
• Motor Application: General Purpose
• HP: 1
• Enclosure: ODP
• Phase: Single Phase
• RPM: 1800
• C Dimension: 11.6
• Frame Size: 56C
• Hz: 60
• Mounting: C-Face - With Base, C-Face/Base
• Full Load RPM: 1725
• Weight: 31.0 LB
• EAN or UPC: 786382053673
