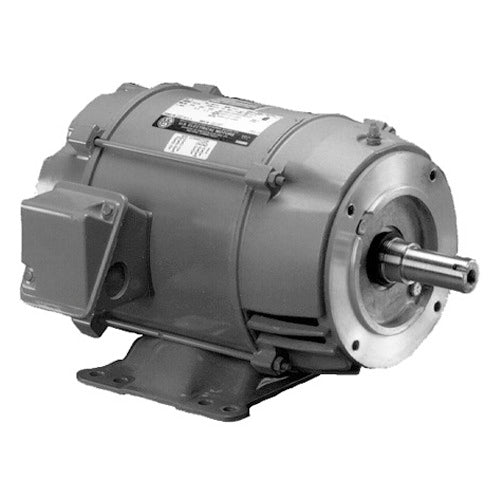

U.S. Motors D7P2DC General Purpose Three Phase ODP Horizontal - Footed Motor

Product Description

The U.S. Motors D7P2DC is a three-phase motor designed for general-purpose applications. This motor features a horizontal footed design and operates at seven and a half horsepower with an efficiency rating of 91 percent. The voltage rating is 208-230/460 and 190/380, making it versatile for various setups. The open drip-proof (ODP) enclosure allows for reliable performance in numerous environments. The motor mounts in a horizontal configuration and comes with a 213TC frame size.

• Continuous duty rating
• RPM options include 1450 and 1765
• Constructed from rolled steel for durability

Product Highlights

Ideal for industrial and commercial applications, this motor can be used in pumps, fans, and other machinery where three-phase operation is required. Its robust design ensures longevity and reliability in demanding conditions.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D7P2DC

Technical Specifications

• Frame Material: Rolled Steel
• Duty: Continuous Duty
• Poles: 4
• Full Load RPM: 1450 rpm, 1765 rpm
• Voltage Rating: 208-230/460 & 190/380
• Motor Application: General Purpose
• Mounting: Horizontal - Footed
• Full Load Efficiency: 91%
• Phase: Three Phase
• Hz: 50/60 Hz
• Enclosure Designation: ODP - Open Drip Proof
• Frame: 213TC
• Insulation: F
• Full Load Amps: 20.2-18.5/9.3
• Weight: 100.0 LB
• EAN or UPC: 786382094669
