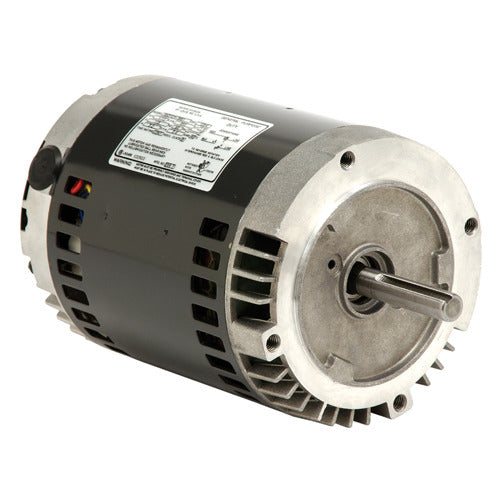

U.S. Motors D34CP2PCR General Purpose Single Phase ODP Motor

Product Description

The U.S. Motors D34CP2PCR is an efficient general-purpose single-phase ODP motor. This motor operates at a horsepower of three-quarters and delivers a speed of one thousand eight hundred RPM. It uses voltages of one hundred fifteen or two hundred thirty volts and is designed for continuous duty applications.

• Horsepower: 3/4 HP
• Voltage: 115/230 Volts
• Enclosure: Open Drip Proof (ODP)

Product Highlights

This motor is suitable for a variety of general-purpose applications, ensuring reliable performance. The ODP design allows for effective cooling and protection against moisture.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D34CP2PCR

Technical Specifications

• RPM: 1800 rpm
• Frame: 56C
• Voltage Rating: 115/230
• Enclosure Designation: ODP - Open Drip Proof
• Insulation: Class B
• Duty: Continuous Duty
• Full Load Amps: 7/3.5
• Phase: Single Phase
• C Dimension: 11.8 inches
• Full Load Efficiency: 81.8%
• Service Factor: 1.25
• Weight: 29.0 LB
• EAN or UPC: 786382110932
