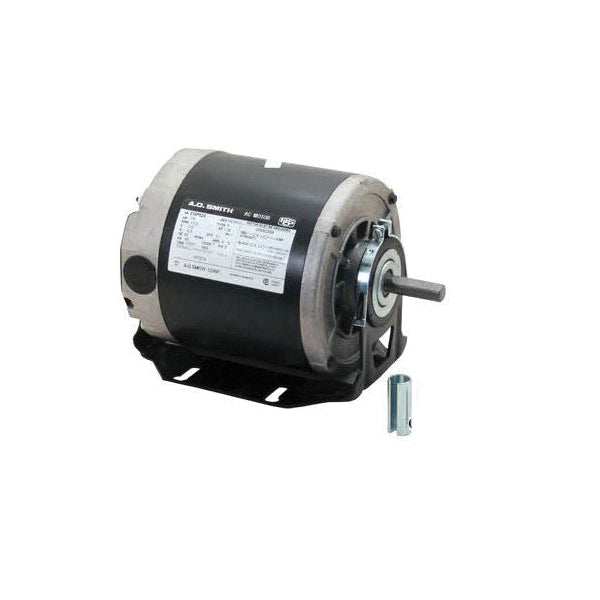

Century GF2024 Split Phase AC Motor Open Enclosure 1/4 hp 115 VAC 60 Hz 1 ph 48 Frame 1725 rpm Speed Resilient Base Mount

Product Description

The Century GF2024 Split Phase AC Motor is designed for various HVAC applications. Built for durability and efficiency, the motor has a power output of 1/4 hp and operates on 115 VAC. With a speed of 1725 rpm, it supports resilient base mounting and reversible rotation.

• Continuous duty operation
• Includes sleeve bearing
• Suitable for centrifugal pumps, blowers, and fans

Product Highlights

This Century GF2024 motor offers reliable performance with a resilient base mount and open enclosure. It's perfect for HVAC professionals looking for a robust motor for their systems.

Product Information

Standard Information

• Brand: Century
• Manufacturer: Regal Beloit
• Country of Origin: US

Technical Specifications

• Type: Split Phase
• Frame: 48
• Phase: 1 ph
• Speed: 1725 rpm
• Rotation: Reversible
• Dimensions: 9.2 in L
• Horsepower: 1/4 hp
• Bearing Type: Sleeve
• Mounting Type: Resilient Base
• Enclosure Type: Open
• Service Factor: 1.35
• Voltage Rating: 115 VAC
• Amperage Rating: 5 A
• Frequency Rating: 60 Hz
• Insulation Class: Class B
• Number of Speeds: 1
• Temperature Rating: 40 deg C
