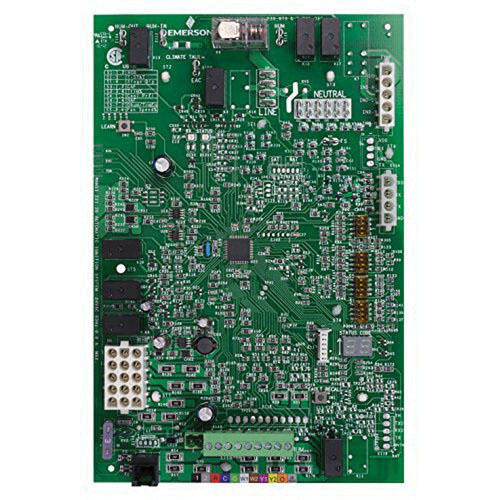

White Rodgers 50C51-707 Goodman Two-Stage Integrated HSI Furnace Control

Product Description

The White-Rodgers 50C51-707 is a two-stage integrated furnace control designed for Goodman variable speed blower applications. This control board optimizes the operation of heating systems for effective temperature management and energy efficiency. It incorporates advanced features for seamless integration into residential heating systems. The control board is ideal for communication with both modern and legacy HVAC systems.

• Direct OEM replacements for major brand controls
• Utilizes diagnostic LED indicators for simple installation and troubleshooting
• Compatible with 120V air cleaner and humidifier outputs

Product Highlights

The enhanced design includes features for safety and energy savings. The board operates efficiently with a built-in diagnostic LED that simplifies troubleshooting and enhances system performance.

Product Information

Standard Information

• Brand: White-Rodgers
• MPN: 50C51-707

Technical Specifications

• Auto Reset Time: 60 min
• Frequency: 60 Hz
• Humidity Range: 5 to 95 % RH
• Ignitor Warm Up: 17 sec
• Input Voltage: 24 VAC
• Maximum Input Current @ 25 VAC: 800 amp + MV
• Post Purge: 15 sec
• Pre-Purge Time: 15 sec
• Temperature Rating: -40 to 175 deg F
• Retries: Infinite times
