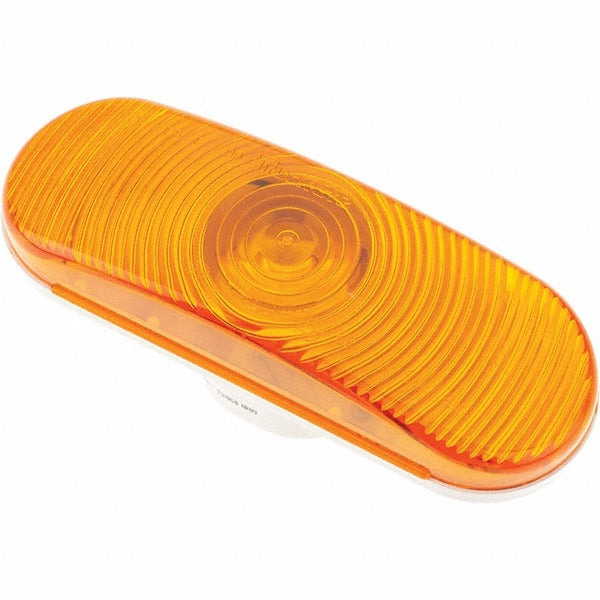

Truck-lite 60202YP Stop Turn Tail Light Yellow Oval

Product Description

The TRUCK-LITE 60202YP is an incandescent stop, turn, and tail light designed for commercial truck and trailer lighting applications. This Super 60 series lamp operates at 12 volts and features a yellow oval lens with a single bulb configuration. It measures 6.5 inches in length and uses a PL-3 base connector. The grommet mount design allows for straightforward surface installation on trailer bodies and cab surrounds. Amperage draw is rated at 0.48 amps minor and 2.1 amps major, keeping load well within standard trailer wiring capacity. Licensed electricians and fleet service technicians are the typical installers for this type of marker and signal lamp.

This light is suited for use on Class 6, 7, and 8 commercial trucks and trailers requiring DOT-compliant stop, turn, and tail lighting. The oval form factor and grommet mount make it a common replacement in standard trailer light cutouts. It ships as a single unit and is appropriate for both fleet maintenance shops and individual owner-operators performing routine lamp replacement.

Key Features

• Incandescent single-bulb design with PL-3 base for direct socket replacement
• Yellow oval lens, 6.5 inches in length
• 12-volt operation with 0.48 amp minor and 2.1 amp major draw
• Grommet mount style fits standard oval trailer light cutouts
• Combines stop, turn, and tail functions in a single housing
• No plug included - bare PL-3 connection for direct wiring

Compatibility

Designed as an OEM-style replacement stop, turn, and tail light for 12-volt commercial truck and trailer lighting systems using standard oval grommet-mount housings with PL-3 base sockets.

Installation Notes

Installation is typically performed by a qualified fleet electrician or trailer service technician. Disconnect vehicle power before removing the existing lamp or accessing the wiring harness. Ensure the grommet seal is in good condition and properly seated in the cutout before securing the lamp to prevent moisture intrusion. No plug is included with this unit, so the PL-3 connector must be wired or crimped to the existing harness per applicable FMCSA and NEC standards.
