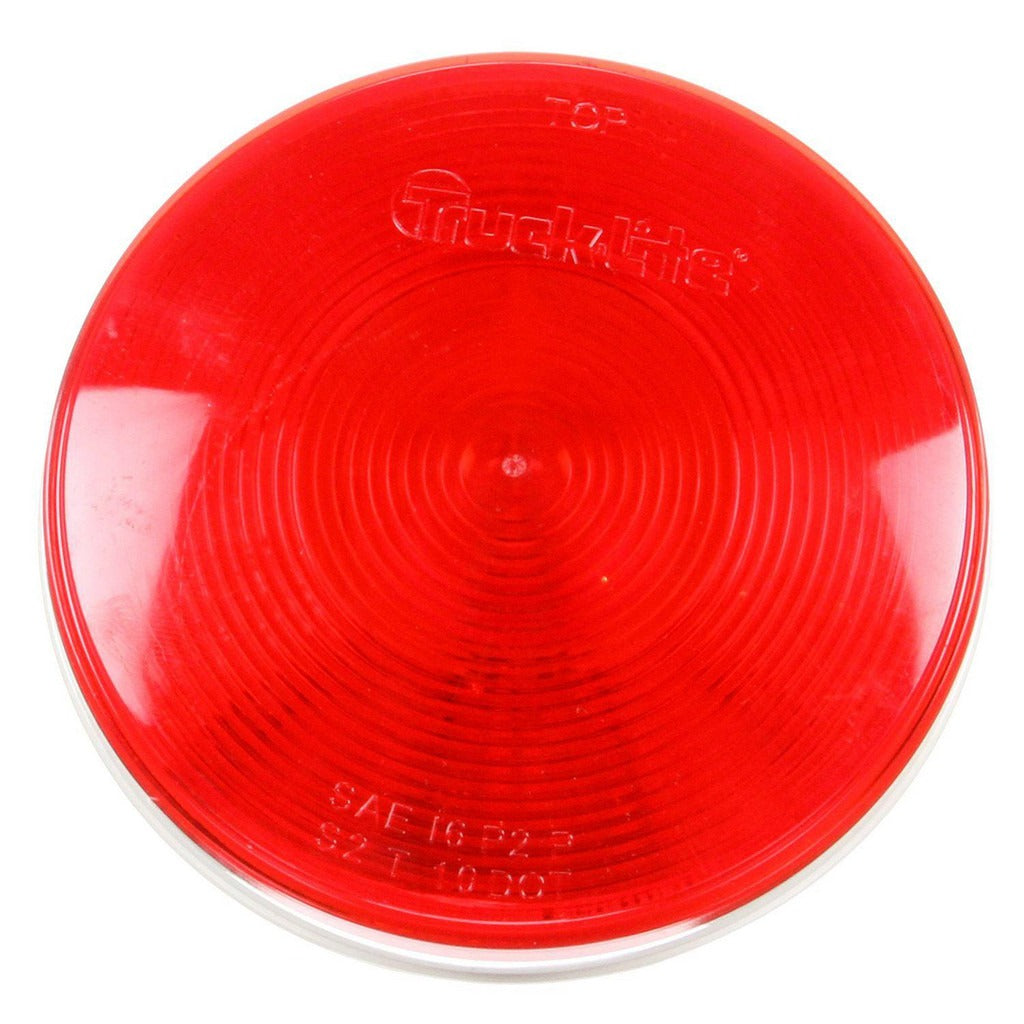

Truck-lite 40202RP Stop Turn Tail Light 12V Red Round

Product Description

The TRUCK-LITE 40202RP is a 40 Series incandescent stop, turn, and tail light designed for 12-volt commercial and fleet vehicle lighting applications. This single-bulb unit features a round red lens and mounts via a standard grommet, making it a straightforward replacement for trucks, trailers, and other heavy-duty vehicles. It measures 4 inches in length and draws up to 2.1 amps at full load. The PL-3 connector interface is a widely recognized standard in commercial vehicle lighting. Licensed electricians and fleet maintenance technicians are the typical installers for this type of marker and signal light.

This light is suited for trailer and truck body applications requiring a combined stop, turn, and tail function in a single compact housing. The grommet mount design allows for fast installation into pre-drilled mounting holes on trailer sidewalls, truck beds, and body panels. The round lens profile and red color meet standard rear-facing lighting requirements for commercial vehicles. It is sold individually, though a minimum order quantity of 5 units applies per order.

Key Features

• Combined stop, turn, and tail function in one unit
• Round red lens with grommet mount for simple panel installation
• Single incandescent bulb, PL-3 connector interface
• Operates at 12 volts with a 2.1 amp major amperage rating
• 4-inch length fits standard grommet cutouts on trailers and truck bodies
• No plug included - direct PL-3 socket wiring required

Compatibility

Designed as an OEM-style replacement stop, turn, and tail light for 12-volt commercial trucks, trailers, and fleet vehicles using a standard grommet-mount round light housing with a PL-3 connector.

Installation Notes

Installation is typically performed by a qualified fleet electrician or vehicle body technician. Disconnect vehicle power before removing the existing light or handling wiring. The PL-3 socket must be present in the harness before installation, as this unit does not include a plug. Verify grommet hole diameter matches the light body before mounting to ensure a proper weatherproof seal.
