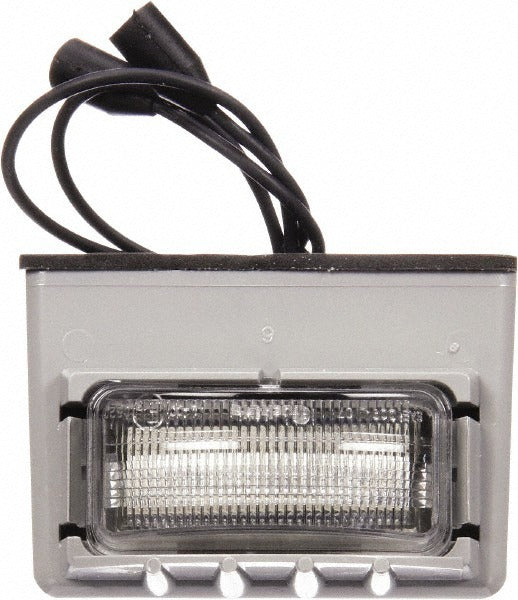

Truck-lite 15040 Led License Light 12V Rectangular

Product Description

The TRUCK-LITE 15040 is a 12-volt LED license light designed for commercial truck and trailer applications. Part of the 15 Series, it uses 3 diodes behind a rectangular clear lens to deliver reliable, low-draw illumination at 0.03 amps. The gray bracket mount and included gasket allow for a clean, weatherproof installation. Wiring is handled through a female PL-10 hardwired connection. This light is installed by fleet maintenance technicians and trailer service professionals as an OEM-style replacement or new-installation component.

This license light is suited for use on semi-trailers, flatbeds, box trucks, and similar commercial vehicles requiring a compliant rear license plate light. The kit includes the bracket, gasket, and LED light assembly, making it a complete drop-in solution for new builds or replacement work on vehicles equipped with standard bracket-mount license light provisions. Its compact footprint - 2.52 inches in length and 3.38 inches wide - fits tight rear-panel locations without modification.

Key Features

• 3-diode LED array draws only 0.03 amps at 12 volts, reducing electrical load versus incandescent alternatives
• Rectangular clear lens in a compact profile fits standard commercial trailer license plate areas
• Female PL-10 hardwired connection for a secure, weather-resistant electrical interface
• Gray bracket mount with included gasket provides a sealed, vibration-resistant installation
• Kit includes bracket, gasket, and LED light - no additional hardware required for most applications

Compatibility

Designed as an OEM-style replacement or new-installation license light for commercial trucks and trailers equipped with bracket-mount license light provisions and a 12-volt electrical system using female PL-10 connections.

Installation Notes

Installation is typically performed by a qualified fleet technician or trailer electrician. Disconnect vehicle power before beginning any wiring work. The female PL-10 connector should be mated to a matching male PL-10 pigtail on the vehicle harness; verify polarity and connector condition before completing the circuit. Secure the bracket fasteners firmly and confirm the gasket is properly seated to maintain the weatherproof seal.
