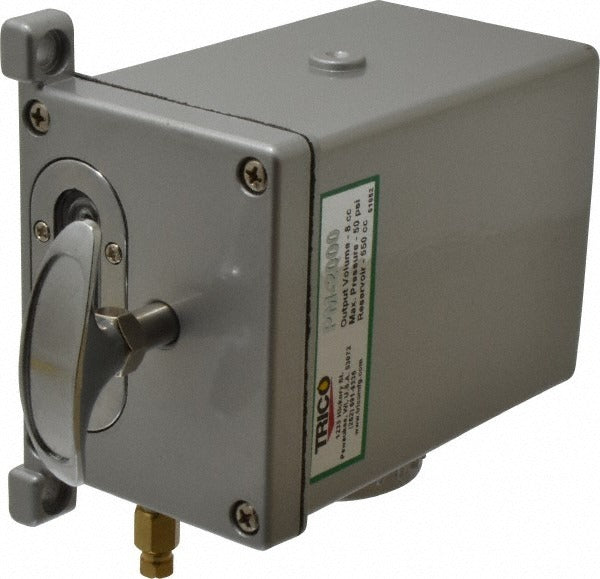

Trico PM-2000-R Manual Central Lubrication System

Product Description

The TRICO PM-2000-R is a manual central lubrication system designed to deliver controlled, metered oil distribution to machinery and equipment requiring centralized lubrication points. It delivers 8 cc of oil per stroke and holds a 550 cc reservoir, giving technicians reliable, measurable output without requiring a powered pump. The aluminum reservoir and built-in sight gauge allow quick visual checks of oil level during service intervals. Operating temperature range spans 32 degrees F to 120 degrees F, with a maximum working pressure of 70 psi. Industrial maintenance technicians and equipment service professionals install this unit on stationary machinery, conveyors, and other multi-point lubrication systems.

The PM-2000-R is suited for industrial and commercial maintenance applications where centralized manual lubrication is required. It is designed for use with oil-type lubricants and connects via a 5/16-24 inch outlet thread, making it compatible with standard centralized lubrication line fittings. The compact footprint, measuring 80 mm wide by 126 mm high (approximately 3.15 inches wide by 4.96 inches high), allows installation in tight equipment enclosures or on machine frames with limited mounting space. This unit is well matched for facilities maintenance, production line equipment, and light industrial machinery requiring scheduled manual lubrication.

Key Features

• Manual operation delivers a fixed 8 cc of oil per stroke for consistent, measurable lubrication
• 550 cc aluminum reservoir provides extended service intervals between refills
• Built-in sight gauge allows visual oil level monitoring without disassembly
• Convenient drop-in filter helps keep lubricant clean before delivery
• 5/16-24 inch outlet thread fits standard centralized lubrication line connections
• Compact body, approximately 3.15 inches wide by 4.96 inches high, suits tight mounting locations

Compatibility

Designed for use with oil-type lubricants in manual central lubrication systems using a 5/16-24 inch outlet thread connection. Confirm outlet thread size and lubricant type compatibility with the existing distribution system before installation.

Installation Notes

Installation is typically performed by industrial maintenance technicians or millwrights familiar with centralized lubrication systems. De-energize and lock out all affected machinery before mounting or servicing the unit. Verify outlet thread compatibility and use appropriate thread sealant or fittings per the equipment manufacturer's specifications. Do not exceed the rated maximum pressure of 70 psi or operate outside the 32 degrees F to 120 degrees F temperature range.
