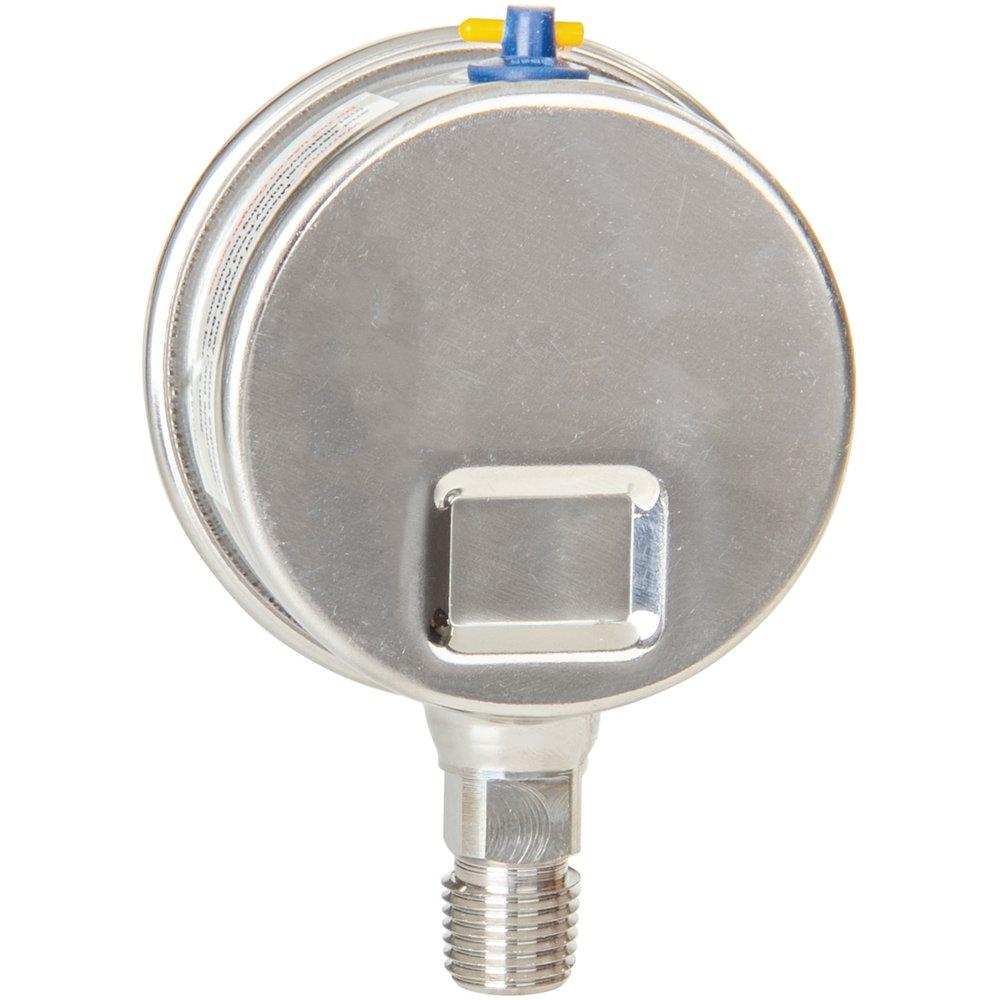

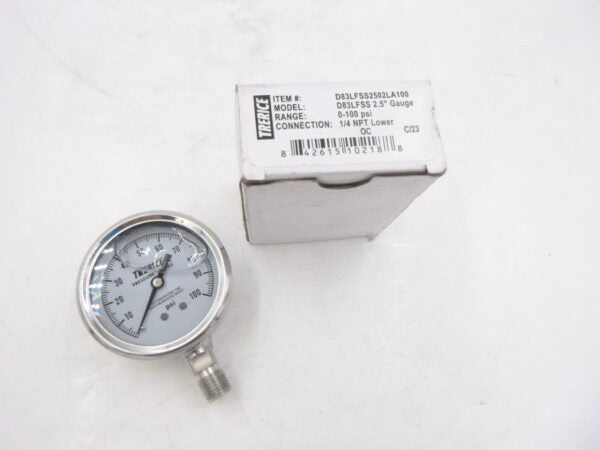

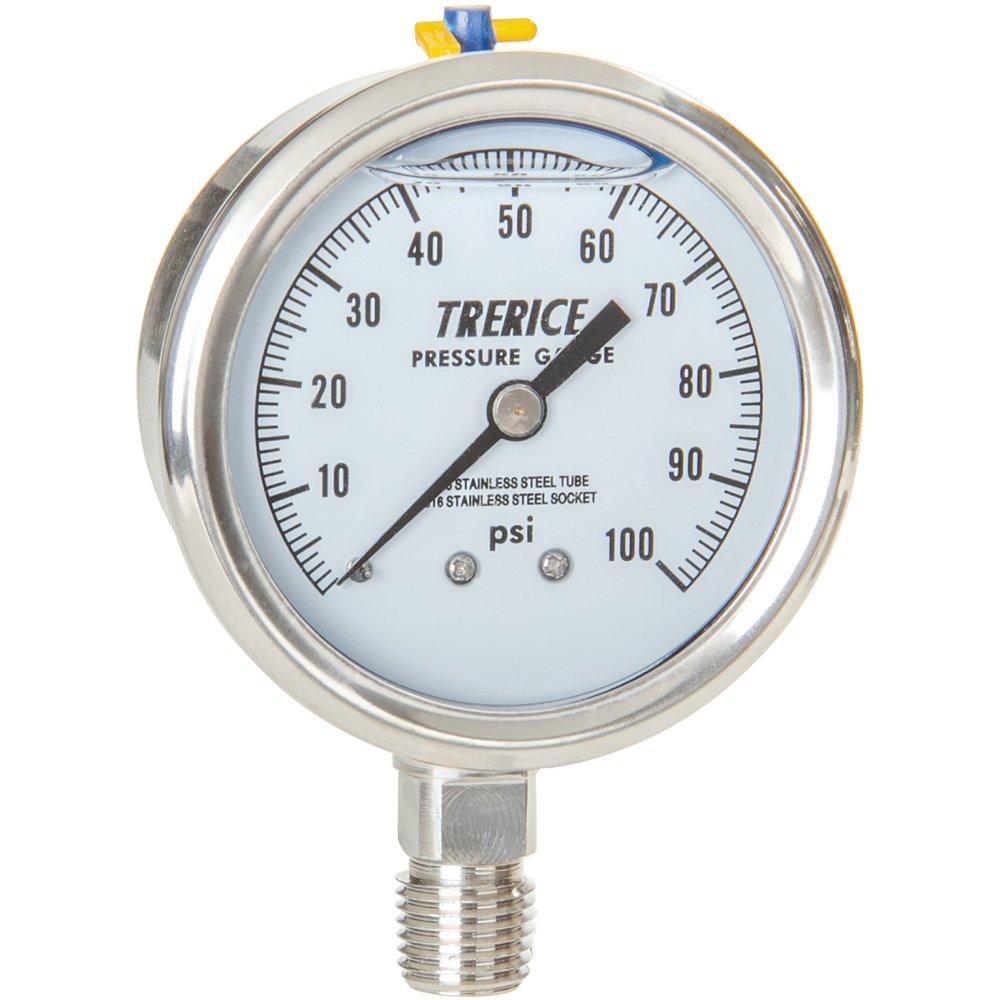

Trerice D83LFSS2502LA100 pressure gauge 2.5 inch lower

Product Description

The TRERICE D83LFSS2502LA100 is a 2.5-inch pressure gauge designed for accurate measurement of pressure from 0 to 100 PSI. It features a 1/4-inch NPT lower connection, making it suitable for various industrial applications. Constructed from metal, this gauge provides reliable performance for monitoring air pressure and other media.

• 2.5 inch face diameter
• 0-100 PSI pressure measurement range
• 1/4 inch NPT lower connection

Product Highlights

Industrial pressure gauge with 0-100 PSI range and 1/4 inch NPT lower connection.

Product Information

Standard Information

• Brand: TRERICE
• Manufacturer Part Number: 842615102188
• Country of Origin: United States

Technical Specifications

• Brand: Trerice
• MPN: D83LFSS2502LA100
• Type: Pressure Gauge
• Face Diameter: 2.5 inches
• Pressure Range: 0-100 PSI
• Connection Type: 1/4 inch NPT Lower
• Material: Metal
• Mounting Type: Side/Bottom Mount
• Standard: ASME B40.100
• Series: D80 Series
• Maximum Operating Temperature: 150 Deg F
