Product Description

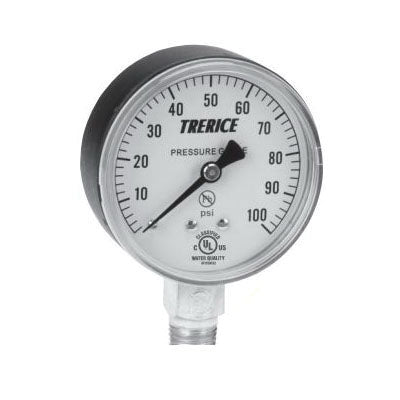

The Trerice 800B utility gauge is suitable for general pressure indication tasks. This gauge is built for reliability and cost-effectiveness. It features a bronze tube and Lead-Free brass socket as wetted components.
Trerice Utility Pressure Gauge, Dry, Series 800B, measures from thirty inches of mercury to thirty pounds per square inch. It has a quarter inch MNPT connection and a four inch dial diameter. The accuracy is recorded at one point six percent, with a temperature tolerance up to one hundred eighty degrees Fahrenheit. The mounting type is lower, and it comes in a steel case with specified dimensions of three point ninety-four inches in diameter by one point thirty-eight inches deep.
- Reliable for general pressure indications
- Constructed with Lead-Free brass socket
- Temperature rated up to one hundred eighty degrees Fahrenheit
Product Highlights
Designed for various pressure measurement applications, this gauge ensures accurate readings while maintaining a simple design for easy use.
Product Information
Standard Information
-
Brand: Trerice
-
MPN: 800B4002LA30/30
Technical Specifications
-
Accuracy: 1.6 %
-
Color: Black
-
Connection Size: 1/4 in MNPT
-
Dial Diameter: 4 in
-
Dimensions: 3.94 in Dia x 1.38 in D
-
Material: Steel Case
-
Mounting Type: Lower
-
Pressure Range: 30 in Hg to 30 psi
-
Series: 800B
-
Temperature Rating: 180 deg F
-
Type: Dry
