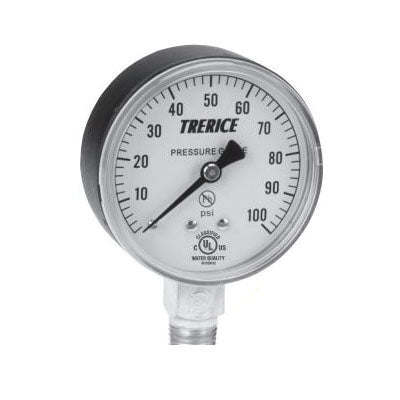

Trerice 800B4002LA30/0 800B Dry Utility Pressure Gauge

Product Description

The Trerice 800B utility gauge is engineered for general pressure indication needs. This gauge offers dependable service at an affordable price. The wetted parts consist of a bronze tube and lead-free (PBF) brass socket.

It features a pressure range from 30 inches of mercury to 0 pounds per square inch. The gauge includes a quarter-inch MNPT connection, a four-inch dial diameter, and accuracy rated at 1.6 percent. The temperature rating is 180 degrees Fahrenheit, and it has a lower mount design with a durable steel case.

• Reliable performance for pressure measurement
• Durable materials including steel case
• Lower mount design for easy installation

Product Highlights

This gauge is suitable for various applications where accurate pressure readings are required.

Product Information

Standard Information

• Manufacturer: H.O. Trerice
• Brand: Trerice

Technical Specifications

• Type: Dry
• Color: Black
• Series: 800B
• Accuracy: 1.6 %
• Connection Size: 1/4 in MNPT
• Dial Diameter: 4 in
• Dimensions: 3.94 in Dia x 1.38 in D
• Material: Steel Case
• Mounting Type: Lower
• Pressure Range: 30 in Hg to 0 psi
• Temperature Rating: 180 deg F
