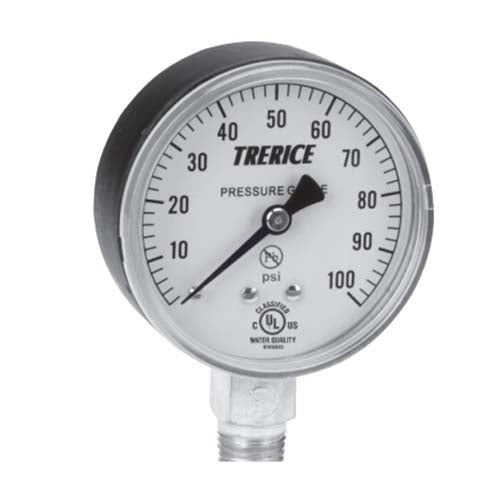

Trerice 800B4002LA110 Pressure Gauge Utility 0 - 100 psi

Product Description

The Trerice 800B4002LA110 is a pressure gauge designed for general pressure indication. This utility gauge features a four-inch dial and measures pressure from zero to one hundred psi. It uses a bronze tube and a lead-free brass socket for durability and reliability.

• Brass movement for precision
• Black drawn steel case
• Certified by ANSI/NSF 61 and 372

Product Highlights

This gauge is suitable for various applications where accurate pressure measurement is essential.

Product Information

Standard Information

• Brand: Trerice
• Manufacturer: H O Trerice

Technical Specifications

• MPN: 800B4002LA110
• Type: Utility
• Measuring Range: 0 - 100 psi
• Accuracy: Plus/Minus 1.6% Full Scale
• Connection Size: 1/4 in
• Connection Type: MNPT
• Dial Size: 4 in
• Depth: 1.38 in
• Diameter: 3.94 in
• Material: Drawn Steel
• Finish: Black
• Temperature Rating: 180 deg F
• Mounting: Lower
• Standards/Certifications: ANSI/NSF 61 and 372 certified, cULus MH59892 listed, ASME B40.100
