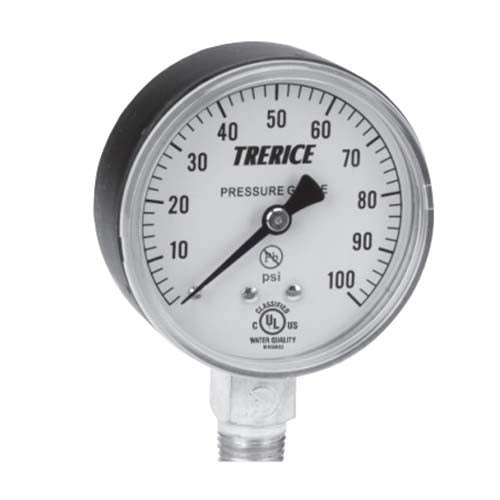

Trerice 800B2502LA110 Pressure Gauge 0 - 100 psi

Product Description

The Trerice 800B2502LA110 is a utility pressure gauge used for general pressure indication requirements. This gauge offers reliable service and features essential components for durability. Constructed with a bronze tube and lead-free brass socket, it meets various industry standards. The gauge has a clear acrylic window and a black finished pointer for easy readability.

• Utility pressure gauge with a measuring range of 0 to 100 psi.
• Compatible with lower mounting connections.
• ANSI/NSF certified and suitable for general applications.

Product Highlights

The Trerice 800B2502LA110 is designed for easy installation and reliable performance for a variety of applications.

Product Information

Standard Information

• Brand: Trerice
• Manufacturer: H O Trerice

Technical Specifications

• Item Name: Pressure Gauge
• Model: 800B
• Finish: Black
• Material: Drawn Steel
• Connection Size: 1/4 in
• Connection Type: MNPT
• Accuracy: Plus/Minus 1.6% Full Scale
• Measuring Range: 0 - 100 psi
• Temperature Rating: 180 deg F
• Dial Size: 2-1/2 in
• Depth: 1.16 in
• Diameter: 2.48 in
• Mounting: Lower
• Standards/Certifications: ANSI/NSF 61 and 372 certified, cULus MH59892 listed, ASME B40.100
• Applications: For a variety of general application
