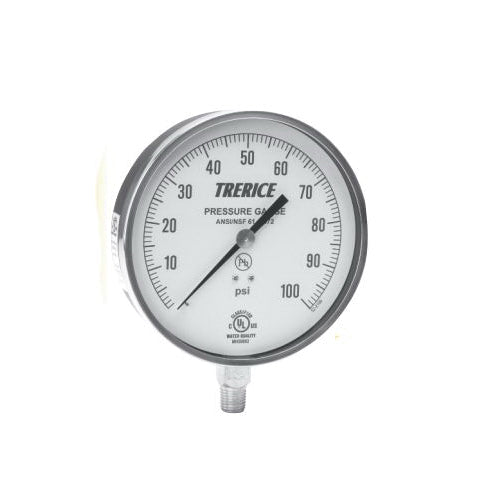

Trerice 600CB4502LA100 Pressure Gauge 0-100 psi 4.5 Dial

Product Description

The Trerice 600CB4502LA100 pressure gauge is designed for precise pressure monitoring in industrial applications. It features a 0-100 psi measurement range and a 4.5-inch dial for clear readings.

• 0-100 psi measurement range
• 4.5-inch dial
• Durable stainless steel construction

Product Highlights

Ideal for various industrial applications, this pressure gauge is constructed with a resilient stainless steel case and features a liquid-filled design to minimize vibration effects.

Product Information

Standard Information

• Brand: Trerice
• MPN: 600CB4502LA100

Technical Specifications

• Accuracy: Plus/Minus 1% Full Scale
• Connection Size: 1/4 inch
• Connection Type: MNPT
• Depth: 1.28 inches
• Dial Size: 4.5 inches
• Diameter: 4.96 inches
• Finish: Black
• Material: Cast Aluminum
• Measuring Range: 0 - 100 psi
• Model: 600CB
• Mounting: Lower
• Temperature Rating: 212 deg F
• Type: Commercial and Contractor
• Standards/Certifications: ANSI/NSF 61 and 372 certified, cULus MH59892 listed, ASME B40.100 grade 1A
