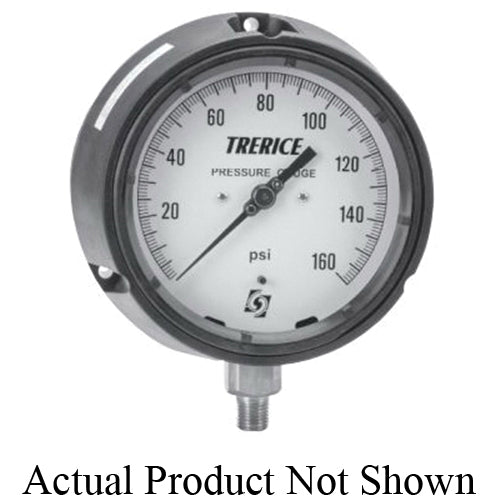

Trerice 450SS4502LA30 450 Solid Front Dry Process Gauge

Product Description

The Trerice 450SS4502LA30 is a solid front dry process gauge designed for use in petrochemical and industrial environments. This gauge features a fiberglass reinforced polypropylene turret case that is known for its durability and reliability. It includes a blow-out back design which enhances safety under high pressure conditions.

This gauge provides a pressure range of 0 to 30 psi and utilizes a 1/4 inch connection size. The dial diameter measures four and a half inches, ensuring ease of reading from a distance. With an accuracy of +/- 0.5%, it is suited for precise monitoring applications.

• Durable fiberglass reinforced polypropylene construction
• Blow-out back design for enhanced safety
• Field liquid-fill capability

Product Highlights

The Trerice 450SS4502LA30 is ideal for applications requiring precise pressure measurement in rugged industrial settings. Its robust design ensures long-lasting performance in various environments.

Product Information

Standard Information

• Brand: Trerice
• Manufacturer: H.O. Trerice

Technical Specifications

• Accuracy: +/- 0.5 %
• Connection Size: 1/4 in
• Dial Diameter: 4-1/2 in
• Dimensions: 5.83 in Dia
• Graduations: 5
• Material: Fiberglass Reinforced Polypropylene
• Mounting Type: Surface
• Pressure Range: 0 to 30 psi
• Series: 450
• Temperature Rating: 250 deg F
• Type: Solid Front Dry
