Product Description

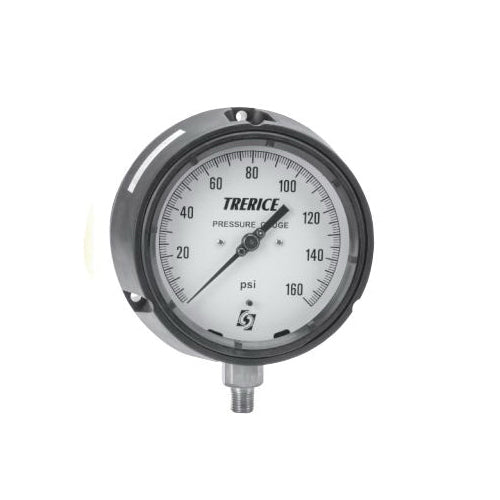

The Trerice 450B4502LA30/0 is a dry pressure gauge designed for industrial and petrochemical use. This product features a solid front and blow-out back design, ensuring durability in demanding environments. Its fiberglass reinforced polypropylene turret case enhances strength and offers a field liquid-fill capability without any additional kits.
- Pressure range: 30 inches Hg to 0 psi.
- Dial diameter: four and one-half inches.
- Accuracy: +/- 0.5% at temperatures up to 250 degrees Fahrenheit.
Product Highlights
The Trerice 450 Series provides reliable pressure measurement for various industrial applications. It maintains accuracy while being able to withstand rugged conditions.
Product Information
Standard Information
-
Brand: Trerice
-
Manufacturer: H.O. Trerice
Technical Specifications
-
MPN: 450B4502LA30/0
-
Connection Size: 1/4 inch MNPT
-
Dial Diameter: 4-1/2 inches
-
Dimensions: 5.83 inches diameter x 3.25 inches depth
-
Material: Fiberglass Reinforced Polypropylene Case
-
Mounting Type: Lower
-
Pressure Range: 30 inches Hg to 0 psi
-
Temperature Rating: 250 degrees Fahrenheit
-
Type: Dry
