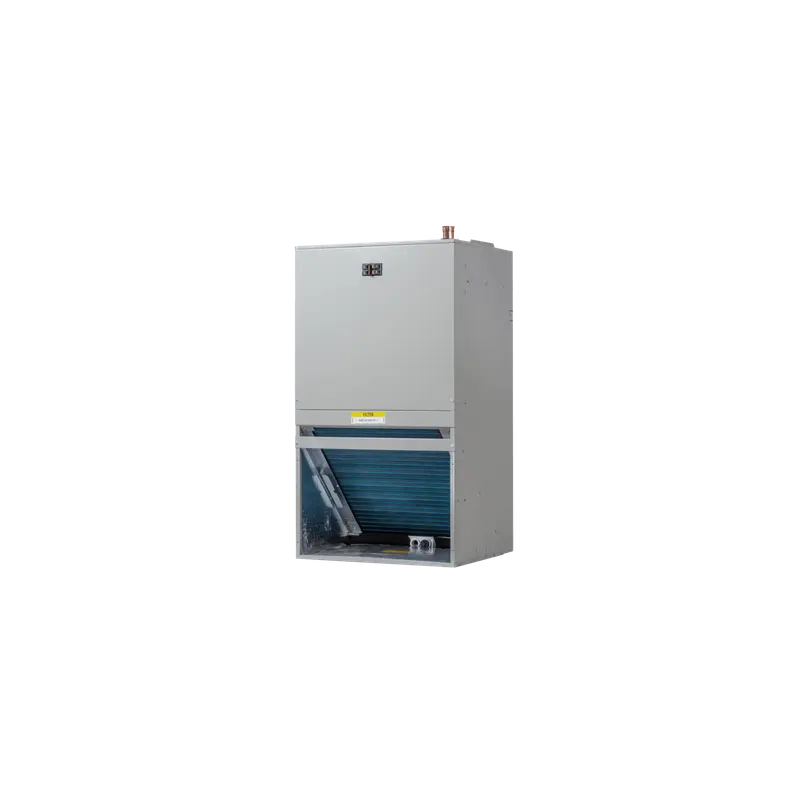

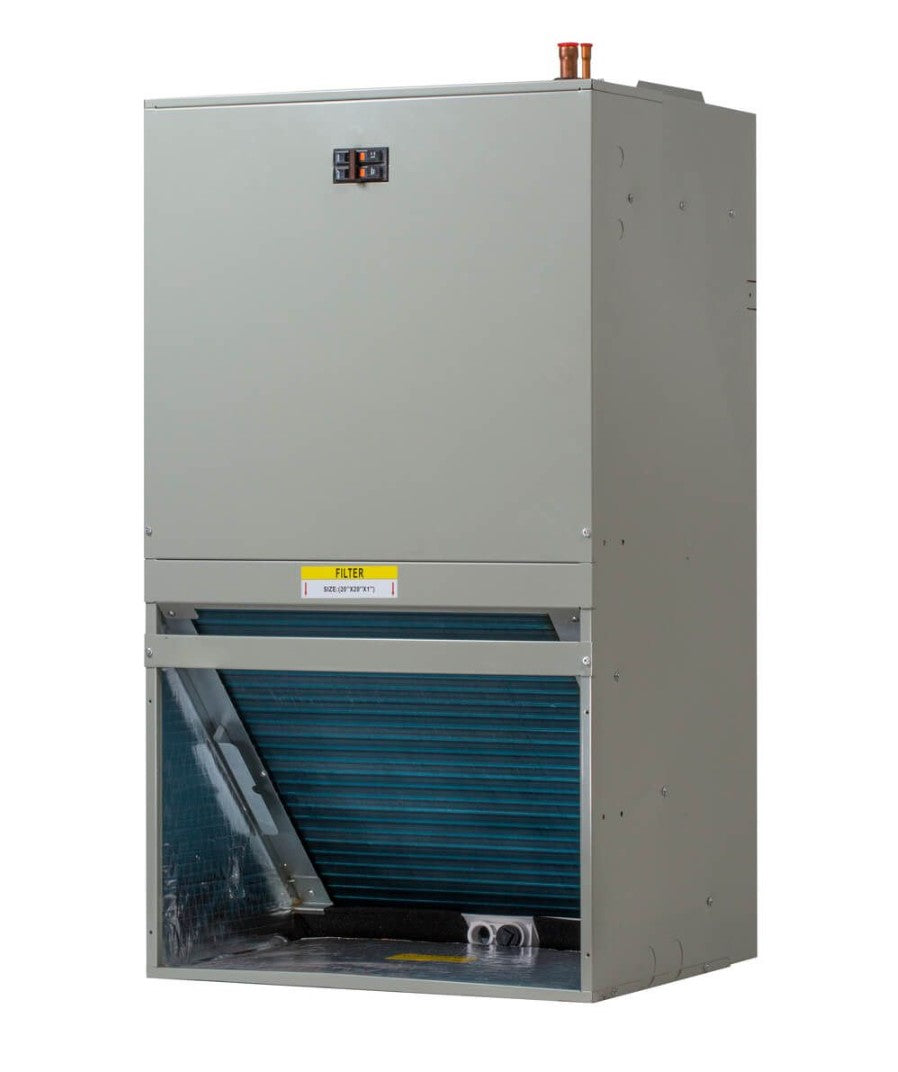

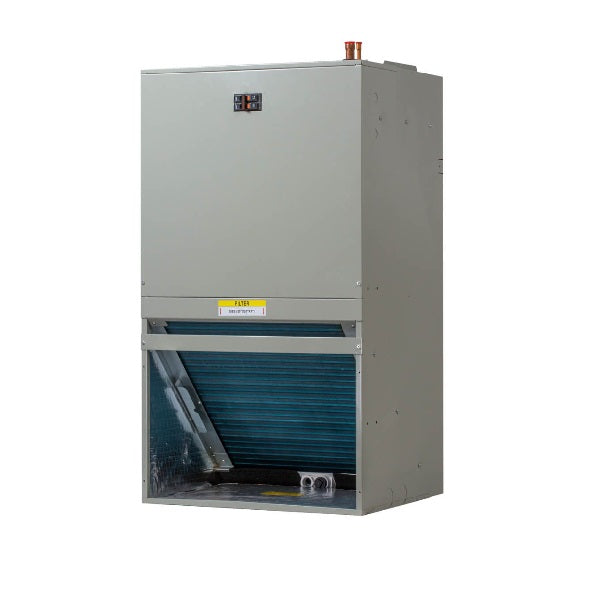

Trane TMM4B0A24S21SA 2 Ton Upflow Direct Drive Air Handler

Product Description

The Trane TMM4B0A24S21SA is a 2 ton wall-mount air handler with an efficient multi-speed direct drive blower motor, providing stable temperatures. It is compatible with both AC-only and heat pump condensers. Designed for wall or frame-mount installations with included hanging brackets. The sturdy, insulated cabinet is approved for mobile home installation.

• 2 ton wall-mount air handler
• Proudly Made in the USA: High-quality HVAC equipment crafted with precision and reliability
• Multi-speed direct drive blower motor

Product Highlights

The Trane TMM4B0A24S21SA air handler ensures quality and enhanced comfort with its multi-speed motor and durable design.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: TMM4B0A24S21SA
• Country of Origin: USA

Technical Specifications

• SKU: TMM4B0A24S21SA
• Depth: 15"
• Width: 21"
• Height: 37"
• Motor RPM: 1075
• Electrical: 208/230v 1 Phase 60Hz
• Horsepower: 1/4 HP
• Liquid Line: 3/8"
• Refrigerant: R410A
• Blower Motor: Multi Speed PSC Motor
• Brand/Manufacturer: Trane
• Suction Line: 3/4"
• Max Breaker Size: 15 Amps
• Min. Breaker Size: 1.3 Amps
• Tonnage: 2 Ton
• Model: TMM4B0A24S21SA
• Electrical Phase(s): 1-Phase
• Liquid Valve Size (Inches): 3/8
• UPC #: 633190019103
• Blower: Multi-Speed
• Category: Air Handlers
