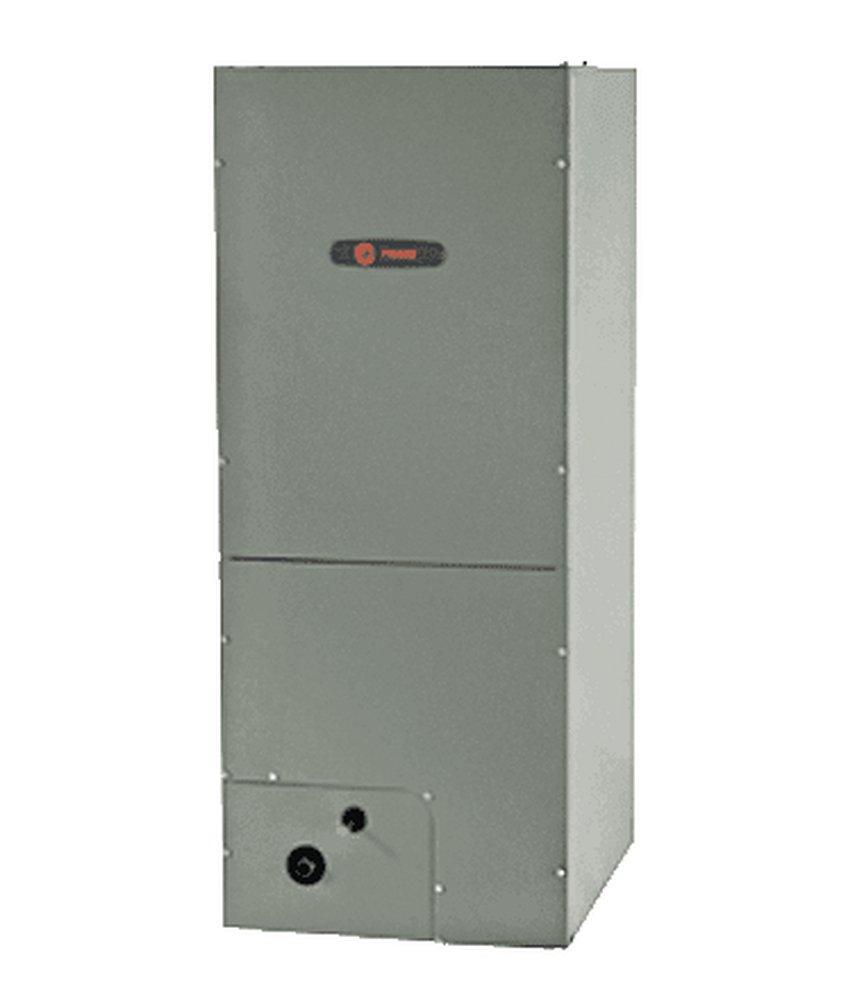

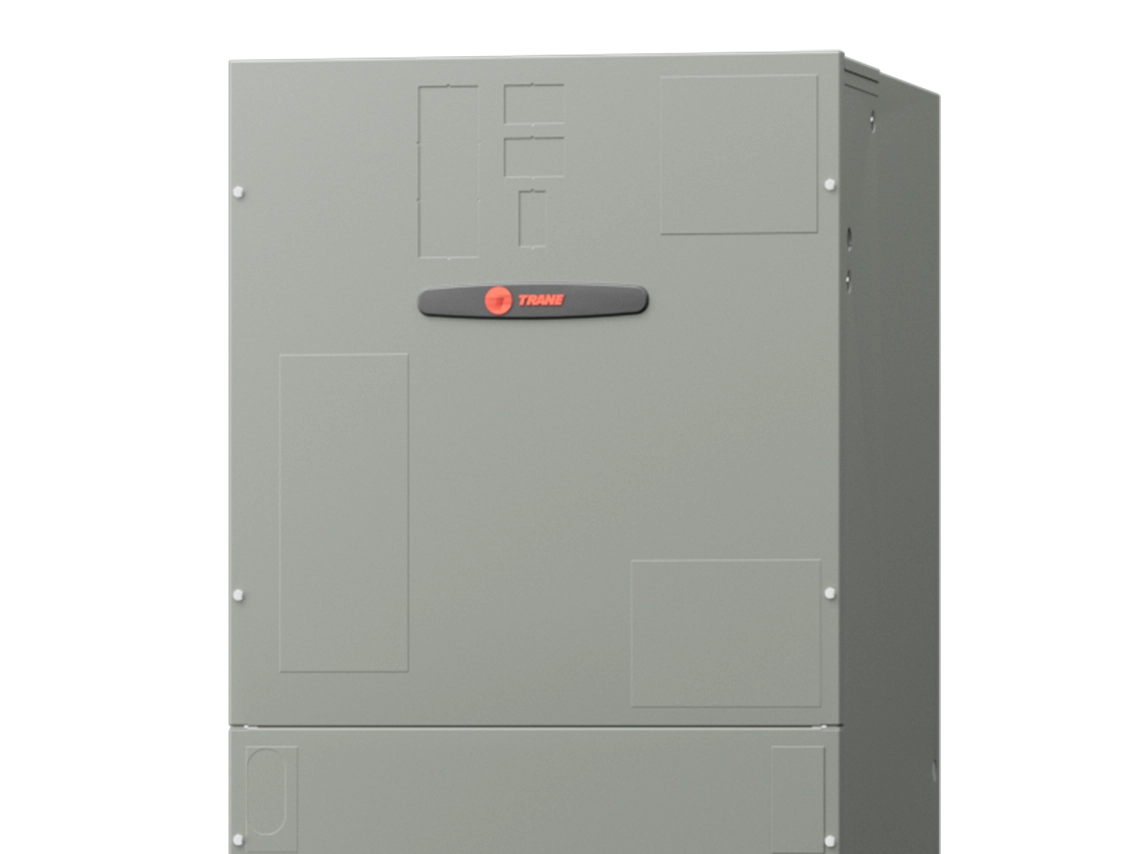

Trane TEM4B0C37M31SA M Series 3 Ton Air Handler

Product Description

The TRANE TEM4B0C37M31SA M Series air handler is designed for efficient home comfort. It features a variable speed blower motor and Comfort-R humidity control. The air handler has a no-rust polymer drain pan, optional electric heat, and an all-aluminum coil. It also features a galvanized steel cabinet and a 4-way convertible line.

• Variable speed blower motor
• Comfort-R humidity control
• No-rust polymer drain pan
• All-aluminum coil

Product Highlights

Offers a variable speed motor and Comfort-R technology for reliable comfort and efficiency.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: TEM4B0C37M31SA

Technical Specifications

• A2L Compatible: No
• AMP: 4.1
• BTU: 36000
• Blower Type: Multispeed
• Coil Type: Plate Fin
• Collection: M Series
• Configuration: Downflow, Horizontal Left, Horizontal Right, Upflow
• Depth: 21.1
• Fan Speeds: 5
• Height: 51.27
• Horsepower: 1-1/2 hp
• Liquid Line (OD): 3/8
• MBH: 36
• Material: Steel
• Phase: Single Phase
• Power Source: Electric
• Refrigerant: R-410A
• Refrigerant Control: TXV
• Refrigeration Control Type: TXV
• SEER: 14.0
• Stages: Single
• Suction Line (OD): 7/8
• Tonnage: 2 - 3.5 Ton
• UL Listed: Yes
• Volts: 208/230V
• Width: 23.5
• Fan Stages: Variable
• Compatible Refrigerant: R-410A
• Communicating: No
• Cooling Capacity (btu/h): 36,000
• Cooling Capacity (Tons): 3.0
• Liquid Line Size (in): 3/8
• Metering Device: TXV
• Product Sector: Residential
• Refrigerant Type: R410a
• Return Air Opening (in): 21.75 X 18.75
• Series: TEM4
• Suction Line Size (in): 7/8
• Supply Air Opening (in): 21.50 X 12.15
• Voltage Rating (VAC): 208-230/1
• Weight (lbs): 155.0
