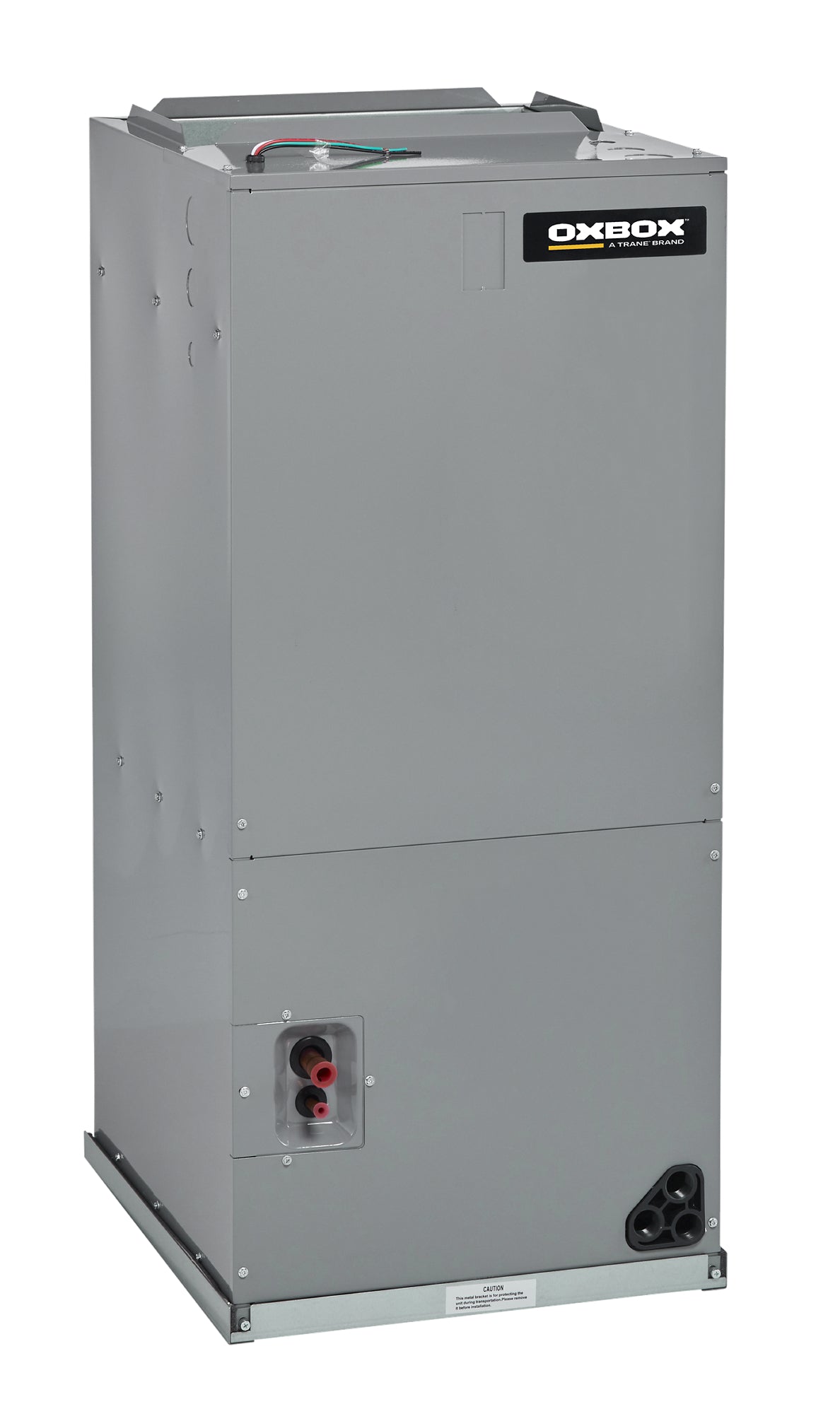

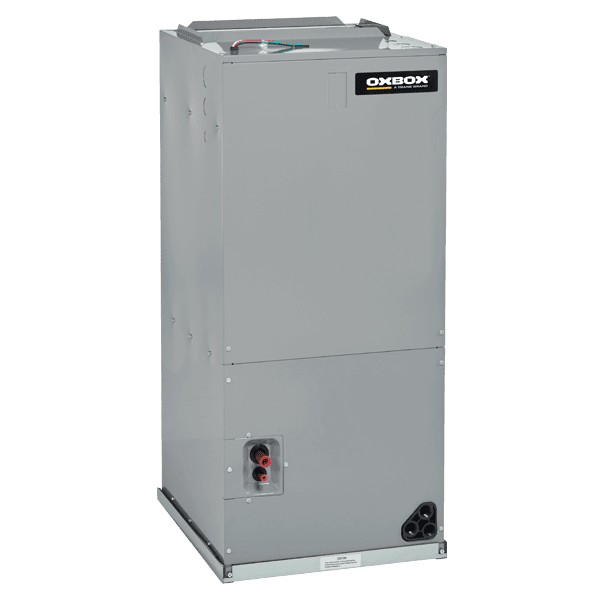

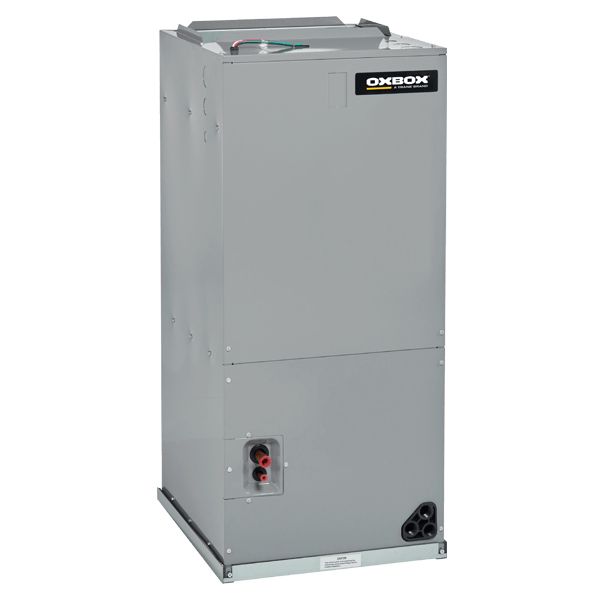

Trane J5AH4P36A1B00A OxBox Air Handler 3 Ton R-454B Refrigerant

Product Description

The Trane OxBox Air Handler J5AH4P36A1B00A is designed to manage air circulation in heating and cooling systems. This unit operates with R-454B refrigerant and provides efficient airflow with multiple configurations. It offers options for vertical upflow, downflow, and horizontal discharge, enhancing its versatility in various installations.

• All-aluminum coils for efficient heat exchange
• Multiple airflow designs for flexible installation
• Durable painted, galvanized steel cabinet for longevity

Product Highlights

This air handler includes a removable front panel that allows easy access for maintenance. The slide-out blower and coil assemblies simplify troubleshooting and servicing tasks.

Product Information

Standard Information

• Brand: OxBox by Trane
• Model Number: J5AH4P36A1B00A

Technical Specifications

• Category: Air Handlers
• Cooling Capacity: 3 Ton
• Tonnage: 3
• Refrigerant Type: R-454B
• Electrical Phase: 1-Phase
• Input Voltage: 208/240
• Hertz: 60
• Suction Valve Size (Inches): 3/4
• Liquid Valve Size (Inches): 3/8
• Dimensions: H46 1/2 x W19 5/8 x D21 5/8
• Indoor Unit Air Flow: Upflow (Top Discharge), Downflow (Bottom Discharge), Horizontal (Side Discharge)
• SEER Rating: 14.3
