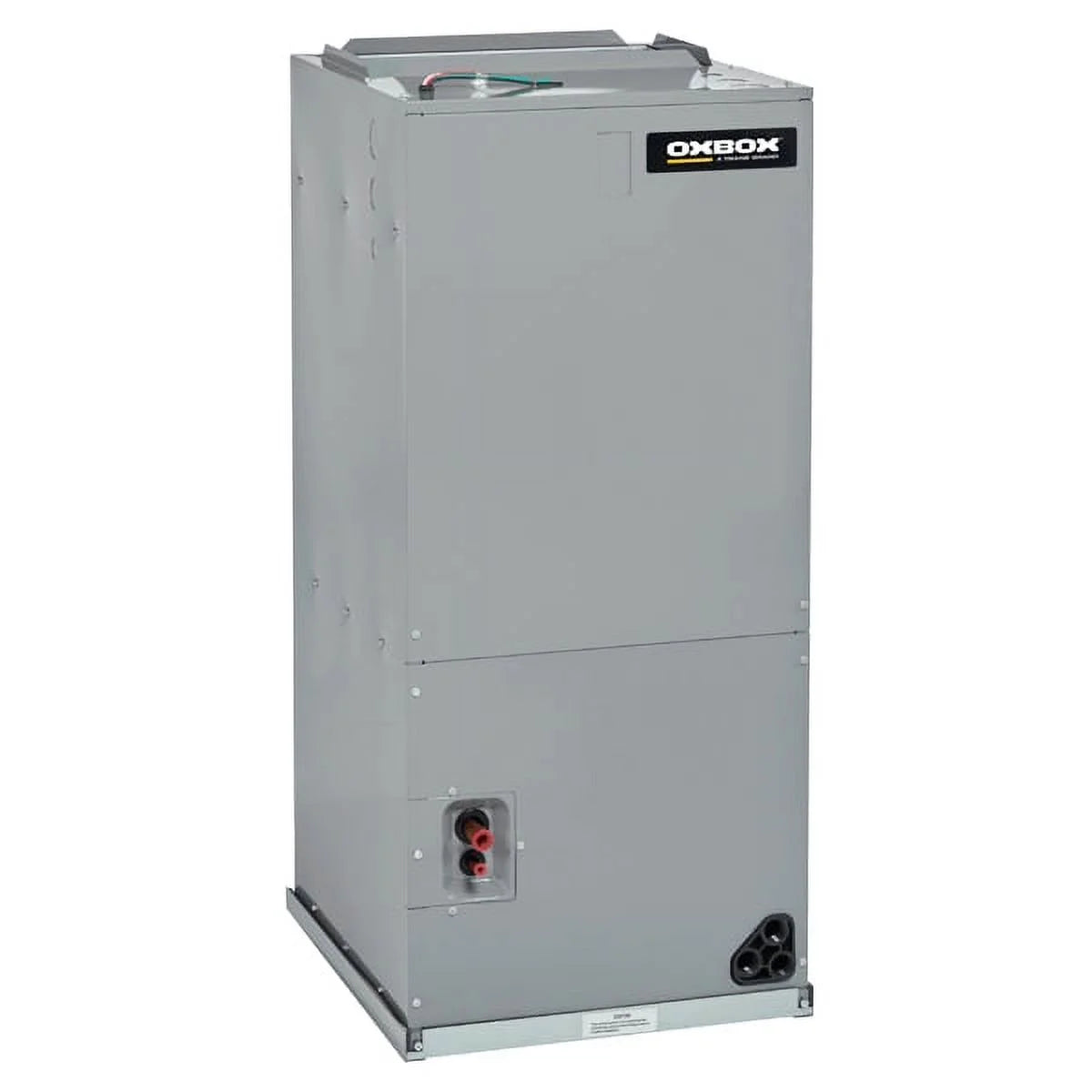

Trane J4AH5E36E1B00A OxBox Air Handler ECM Motor 3 Ton

Product Description

The Trane J4AH5E36E1B00A OxBox Air Handler features an ECM motor and a three-ton capacity. It is designed to efficiently circulate air for both heating and cooling applications. This air handler is ideal for various installation configurations, ensuring flexibility in any environment. The unit includes a robust metal shell and a glass cotton thermal insulation layer to enhance energy efficiency.

• Unique cabinet design for easy setup
• Multi-Position airflow options
• Integrated slide deck for easy maintenance

Product Highlights

Designed for manufactured or mobile homes, this air handler delivers efficient performance for year-round comfort.

Product Information

Standard Information

• Brand: Trane
• Category: Air Handlers

Technical Specifications

• Model Number: J4AH5E36E1B00A
• Ton: 3.0 Ton
• Electrical Phase: 1-Phase
• Blower Type: Multi-Speed
• Refrigerant Type: R-410A
• Suction Valve Size: 3/4 inches
• Liquid Valve Size: 3/8 inches
• Height: 46.5 inches
• Width: 19.625 inches
• Depth: 21.625 inches
• Total Shipping Weight: 141 pounds
• Parts Warranty: 10 years
• Volts: 208/230
• Phase: 1
• Hertz: 60
• Liquid Line Size: 3/8 inches outside diameter
• Suction Line Size: 3/4 inches outside diameter
• Indoor Unit Air Flow: Upflow, Horizontal
• Cooling Capacity: 3 Ton
