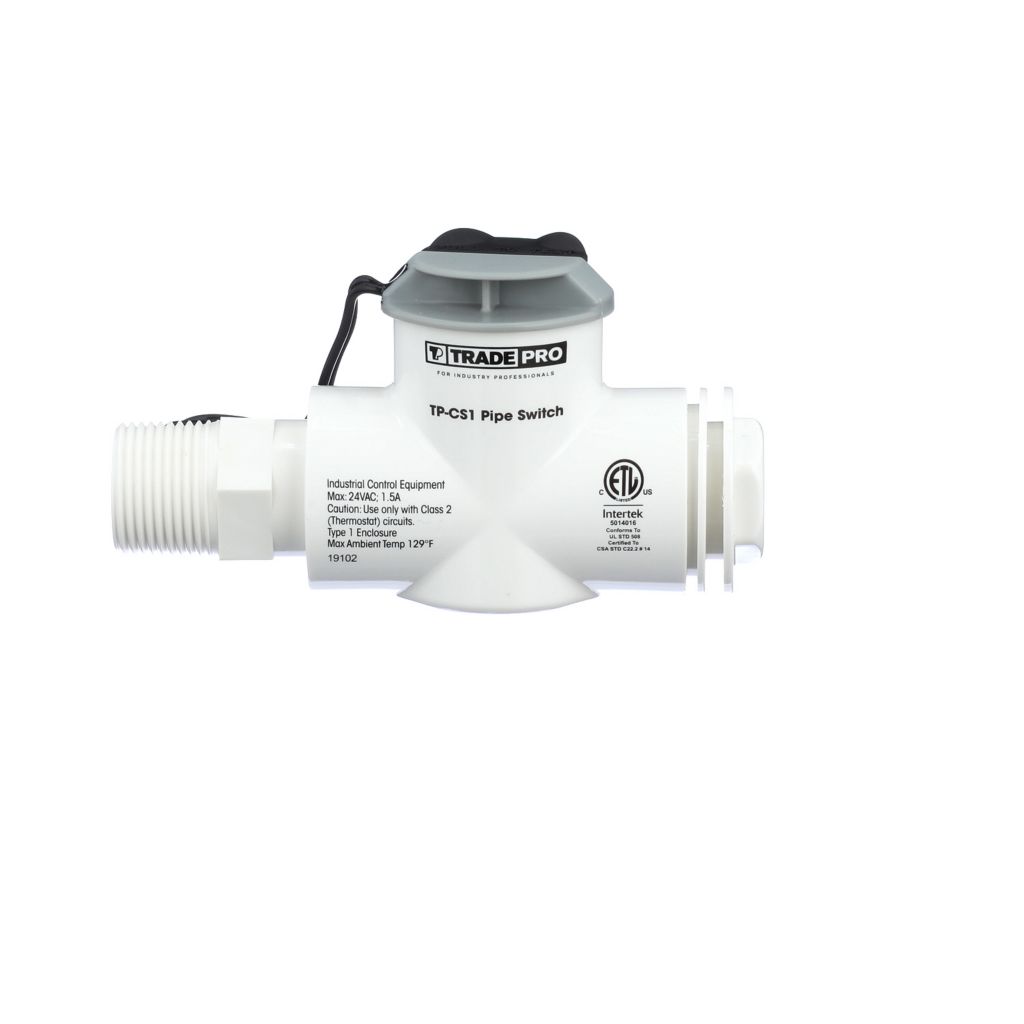

Tradepro TP-CS1 Condensate Drain Line Switch (Primary Or Auxiliary) replacement mpn

Product Description

The TRADEPRO TP-CS1 flood prevention switches are simple to install, easy to service and reliable. As water level rises in the auxiliary or main drain pipe, the switch shuts off the system, preventing water from overflowing. It features a durable magnetic reed switch constructed of rust-resistant materials for smooth operation. All pipe and pan switches come with the proven magnetic reed float design along with six feet of wire for more flexibility in installation.

• Small size for serviceability
• A pull-to-test lever for verifying correct installation
• An integrated LED light indicator that notifies homeowners and technicians activation occurred

Product Highlights

The TRADEPRO TP-CS1 condensate switch has a versatile design and an internal surge protector. It is an alternate for Rectorseal Safe-T-Switch SS1.

Product Information

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: TP-CS1
• Country of Origin: China

Technical Specifications

• SKU: TP-CS1
• Brand: Trade Pro
• Composition: Plastic
• Connection Size: 3/4"
• Cord Length: 6'
• For Use With: Auxiliary or main drain pipe
• Maximum Amps Running: 1.5
• Mounting Type: Primary
• Plenum Rated: true
• Prop 65: Yes
• Switch Type: Magnetic Reed
• Type: Condensate Switch - Tee
• Voltage: 24 VAC
• Wire Gauge: 18 AWG
• MPN: TP-CS1
• Model: Trade Pro TP-CS1
