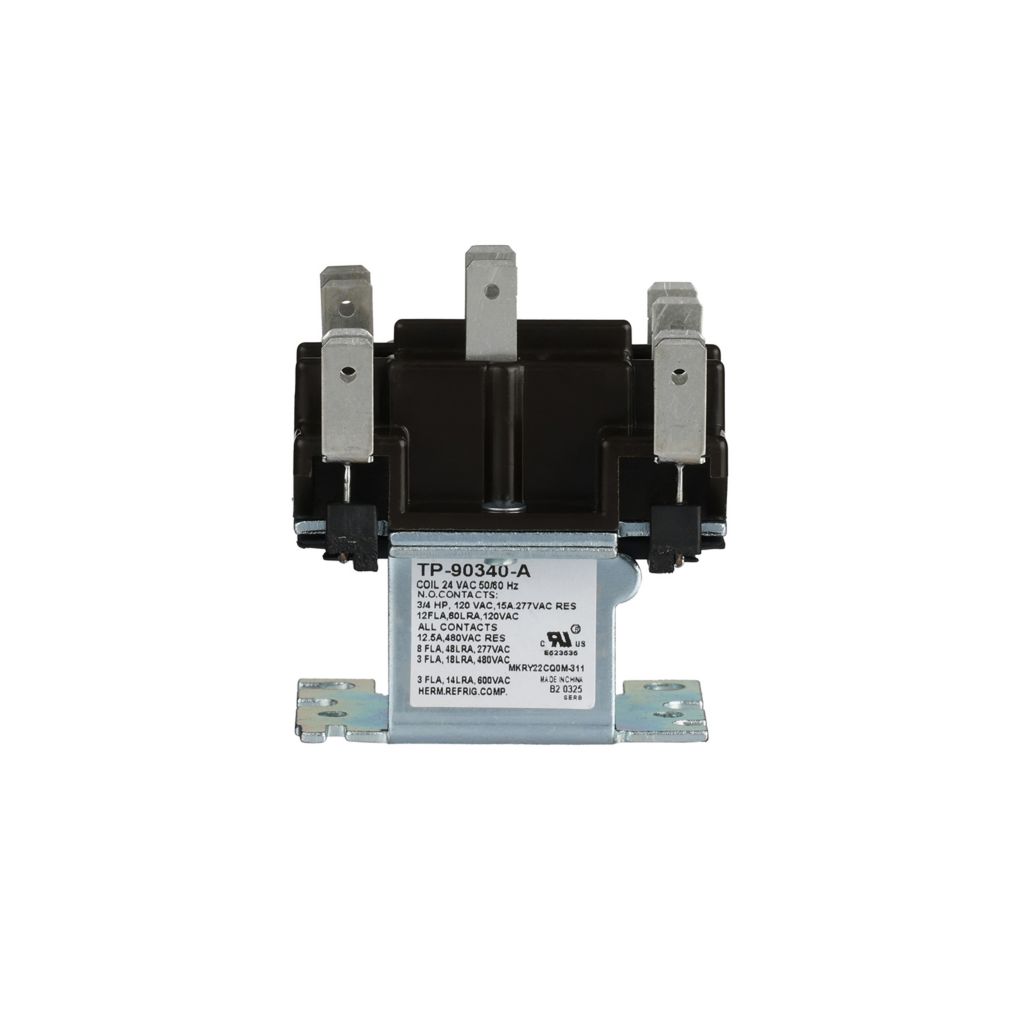

Tradepro TP-90340-A 24V Relay DPDT

Product Description

The TRADEPRO TP-90340-A relay is used on heating and air conditioning equipment to switch heavier loads with its compact size. It features 0.25 inch quick-connect terminals for easy replacement and a universal mounting bracket for easy installation. This general-purpose relay has a control voltage of 24 VAC and an amperage of 12.

• 0.25 inch quick-connect terminals for easy replacement
• Universal mounting bracket for easy installation
• Used on heating and air conditioning equipment

Product Highlights

Compact relay for switching heavier loads in HVAC systems, featuring quick-connect terminals and universal mounting.

Product Information

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: TP-90340-A
• Country of Origin: CHN

Technical Specifications

• SKU: TP-90340-A
• Amps: 12
• Brand: TRADEPRO
• Control Voltage: 24 VAC
• Country of Origin: CHN
• Prop 65: Yes
• Relay Type: General-Purpose
• UPC: 810178526482
• Weight: 0.405
• Length: 1.85 inches (in)
• Width: 2.05 inches (in)
• Height: 2.35 inches (in)
• Part #: TP-90340
• Depth (In.): 1-7/8
• Maximum Amperage: 50 A
• HP: 1/2
• Switch Type: DPDT
• MPN: 90340
• Coil Volts: 24
• Mounting: Universal
• Agency Compliance: UL
• Current Type: AC
• Type: Fan Relay
• NumberOfItems: 1
• Model: 90340
• Application: Electrical Wiring, Air Conditioning, Heating/Ventilating Control Syst
