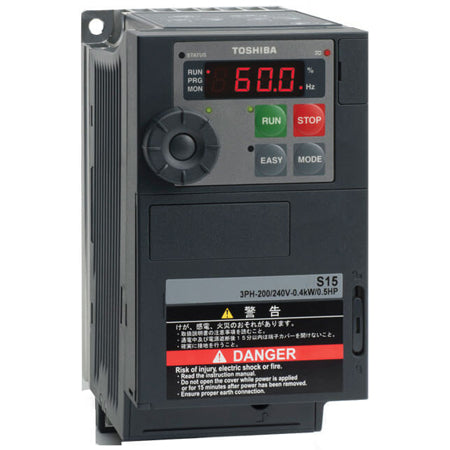

TOSHIBA VFS15-2055PM-W1 Variable Frequency Drive

Product Description

The TOSHIBA VFS15-2055PM-W1 is a variable frequency drive that controls the speed of AC motors. It belongs to the VF-S15 series and offers sinusoidal PWM control. This drive works with a three-phase two hundred thirty VAC power supply and has a frequency range from zero point one to five hundred Hertz.

• Designed for motors rated at seven point five horsepower.
• Includes a built-in operation panel for ease of use.
• Utilizes adjustable speed control suitable for various applications like blowers.

Product Highlights

The TOSHIBA VFS15-2055PM-W1 provides efficient speed control for AC motors, ensuring optimal performance in different applications.

Product Information

Standard Information

• Brand: TOSHIBA
• Series: VF-S15

Technical Specifications

• Control: Sinusoidal PWM control
• Input Voltage: Two hundred thirty Volt three-phase
• Output Voltage: Two hundred thirty Volt three-phase
• Horsepower: Seven point five HP
• Output Current: Twenty seven point five Amp
• Frequency Range: Zero point one to five hundred Hertz
• Default Frequency Setting: Zero point five to sixty Hertz
• Maximum Frequency: Thirty to five hundred Hertz
• Phase: Three-phase
• IP Rating: IP20
• Dimensions: One hundred fifty x two hundred twenty x one hundred seventy mm
• Weight: Three point five kg
