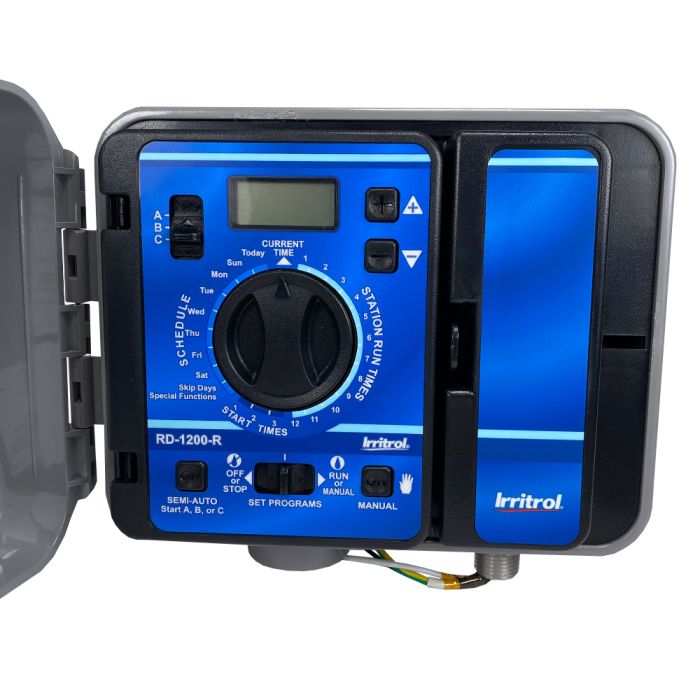

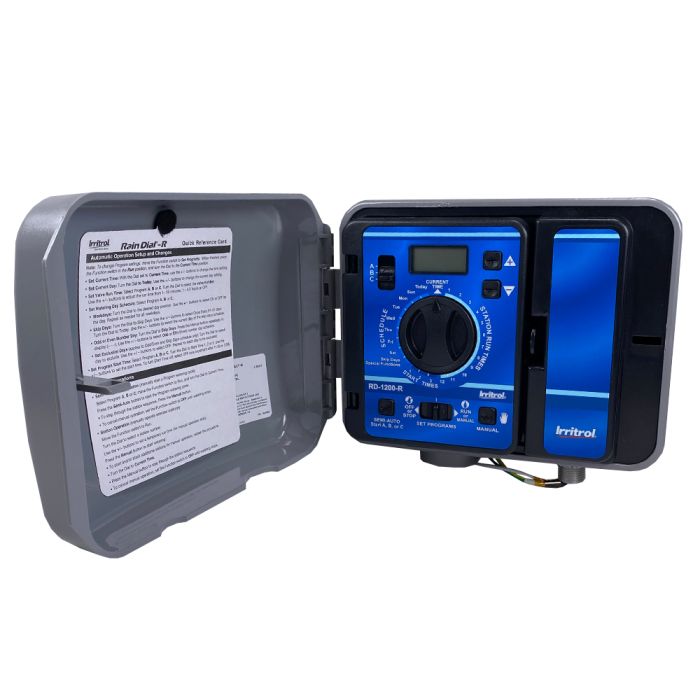

Toro RD1200-EXT-R Rain Dial 12 Station Indoor/Outdoor Controller replacement mpn

Product Description

The TORO RD1200-EXT-R Rain Dial controller includes numerous upgrades and is compatible with the optional CLIMATE LOGIC? Wireless Weather Sensing System. When governed by Climate Logic, the Rain Dial-R automatically adjusts watering based on weather conditions, reducing overwatering. It is also compatible with CRR remote series.

• Climate Logic ready
• Compatible with CRR (Contractor Residential Remote) remote series
• Three independent programs
• Water Budgeting

Product Highlights

This controller offers flexible programming, water budgeting, and compatibility with various sensors and remote systems, making it suitable for residential irrigation.

Product Information

Standard Information

• Brand: TORO
• Manufacturer Part Number: RD1200-EXT-R

Technical Specifications

• Brand: Irritrol
• Product Type: Standard Controllers
• Expandability: Fixed
• Power Source: AC Powered
• Number of Programs: 3
• Start Times Per Program: 9
• Max Station Run Time (HRS): 6
• Indoor: Yes
• Outdoor: Yes
• Sensor Compatible: Rain
• Rain Sensor Compatible: Yes
• Application: Residential
• Series: RainDial
• Zones: 12
• Enclosure Type: Indoor/Outdoor
• Battery: Battery backup for armchair programming and keeping current time and date: 9-volt alkaline (not included)
• Battery Backup: Battery backup for armchair programming and keeping current time and date: 9-volt alkaline (not included)
• Maximum Output per Station: 24V ac, .5 amps
• Maximum Output to Valves: 24V ac, 1.0 amps (including master valve/pump start circuit)
• Start Times (Number of Start Times): 3 per program per day for 9 starts total
• Station Run Times: 1-59 minutes in 1-minute increments or 1-5.9 hours in .1-hour (6 minute) increments
• Transformer Input: 120V ac, 60Hz (220/240V ac, 50Hz available internationally)
• Transformer Output: 24V ac, 1.25 amps
• Watering Schedule (Irrigation Schedule): Any day of the week Skip days from 1 to 31 days between irrigation days Odd or even date watering
• Department: IRRIGATION
