Topaz 656SRT 2 inches Compression EMT Connector

Product Description

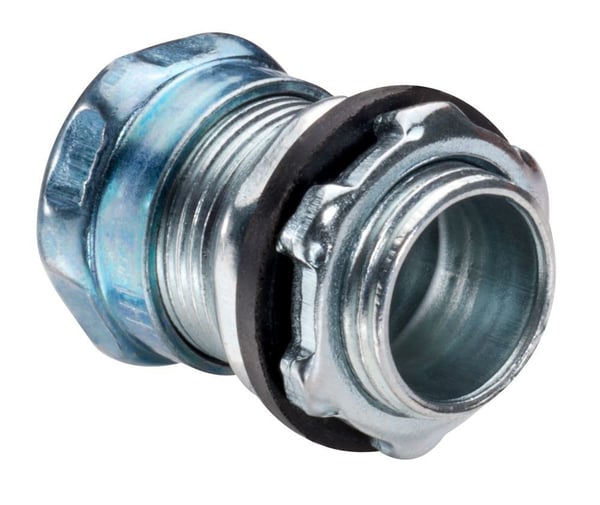

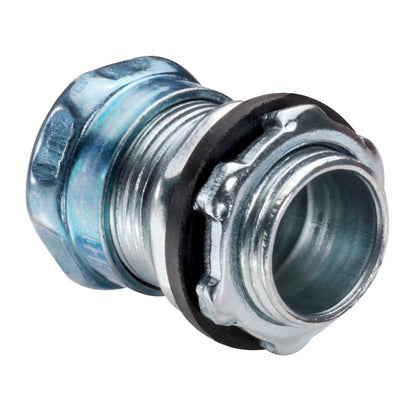

The TOPAZ 656SRT is a 2" Compression EMT Connector. It features a compression type assembly and provides a raintight and concrete tight connection to prevent damage from the elements and ensure continued high performance. Constructed from rugged steel with a zinc plated finish, it includes a steel locknut and gasket.

• Concrete Tight and Rain Tight
• Assembled with a Steel Locknut and Gasket
• UL 514B, UL File Number E170258, US Federal Specification Number A-A-50553, CSA Certified, NEMA/ANSI FB-1, Military Specification: W-F-406D, W-F-406E, W-F-408D, W-S-610D

Product Highlights

Ensures a secure bond between EMT thin wall conduits to electrical boxes or enclosures.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 656SRT

Technical Specifications

• Manufacturer: Buffalo Electric Supply
• Part Number: 656SRT
• Item model number: 656SRT
• Item Package Quantity: 1
• Number Of Pieces: 1
• Included Components: 2"RAINTIGHT STEEL INS.COMP.CONN
• Batteries Required?: No
• Diameter: 2 in
• Material: Steel
• Suitable For Use With: EMT Conduit
• Trade Size: 2 in
• Type: Concrete Tight Raintight
• Application: For joining EMT to box or enclosure
• Standard & Approvals: UL 514B/E170258, US Federal Specification A-A-50553, CSA Certified, NEMA/ANSI FB-1
• Finish: Zinc Plated
• Standards: California Proposition 65
• Insulation: Non-Insulated
