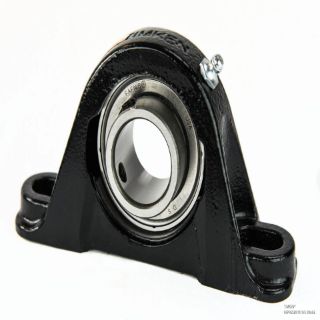

Timken SAS1 3/8 Normal Duty Standard Pillow Block Ball Bearing Unit

Product Description

The Timken SAS1/8 is a normal duty standard pillow block ball bearing unit designed for various industrial applications. Featuring a bore diameter of one and three-eighth inches, this unit is suitable for mounting on straight shafts. It includes a two-bolt base, making it versatile in installation.

• Durable cast iron construction
• Set screw locking device for secure attachment
• Factory pre-lubricated for immediate use

Product Highlights

This unit features a narrow shroud seal, ensuring protection from contamination while maintaining performance in varying conditions.

Product Information

Standard Information

• Brand: Timken
• Part Number: SAS1/8

Technical Specifications

• Material: Cast Iron
• Bore Diameter: 1-3/8 inches
• Bolt Center-to-Center Length: 5.126 inches
• Base to Bore Centerline: 1-7/8 inches
• Overall Length: 6.563 inches
• Overall Width: 1-7/16 inches
• Overall Height: 3.685 inches
• Dynamic Load Capacity: 5770 lb
• Static Load Capacity: 3440 lb
• Maximum Speed: 3930 rpm
• Temperature Rating: 250 degrees F
• Mounting Type: Two-Bolt Base
• Expansion Type: Non-Expansion (Fixed)
• Locking Device: Set Screw
• Seal Type: Narrow Shroud
• Finish: Uncoated
