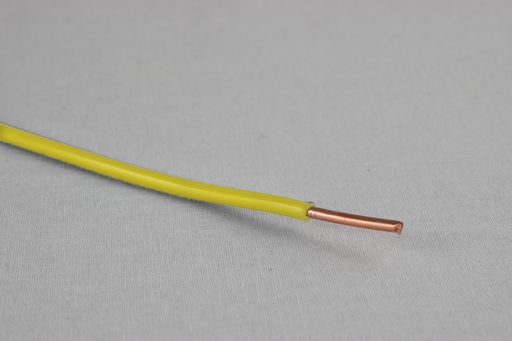

THHNCU-GENERIC THHN14SOLYEL500R THHN 14 AWG Solid Yellow Copper Wire

Product Description

The THHNCU-GENERIC THHN14SOLYEL500R is a solid copper wire with a size of fourteen AWG. This wire features yellow thermoplastic insulation and a nylon sheath, ensuring durability in various conditions. It is designed for use in wet locations, providing resistance to heat, moisture, gasoline, and oil. The wire is rated for a voltage of six hundred volts and can handle a temperature up to ninety degrees Celsius. Each coil measures five hundred feet in length.

• Solid soft annealed copper conductor
• Thermoplastic insulation with nylon sheath
• Rated for wet location use

Product Highlights

This wire is an essential component for electrical installations, providing reliable conductivity and protection in both residential and industrial settings.

Product Information

Standard Information

• Brand: Generic Wire
• Manufacturer Part Number: THHN14SOLYEL500R

Technical Specifications

• Type: THHN
• Material: Soft Annealed Copper
• Size: 14 AWG
• Stranding: Solid
• Color: Yellow
• Length: 500 feet
• Voltage Rating: 600 V
• Current Rating: 15 Ampere
• Temperature Rating: 90 Degrees Celsius
• Insulation Material: PVC
• Jacket Material: Nylon
• Wet Location Use: Yes
• Direct Burial: Yes
• Shielded: No
• Grounded: No
• Standard: UL (Canada and US)
• Jacket Thickness: 4 thousandths of an inch
• Insulation Thickness: 15 thousandths of an inch
• Outer Diameter: 109 thousandths of an inch
• UNSPSC: 26121614
