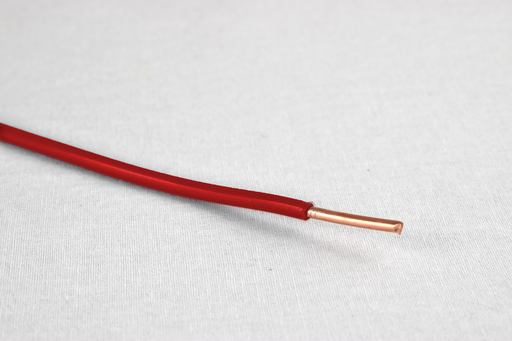

THHNCU-GENERIC THHN10SOLRED500R THHN 10 AWG Solid Red Copper Wire

Product Description

The THHNCU-GENERIC THHN10SOLRED500R is a ten American Wire Gauge solid copper wire designed for various applications. This wire features red thermoplastic insulation and a nylon sheath for durability. Supplied in a five hundred foot coil, it is appropriate for wet locations and supports a voltage rating of six hundred volts. The construction includes soft annealed copper, providing flexibility and strength.

• 10 AWG solid soft annealed copper conductor.
• Features thermoplastic insulation with nylon sheath.
• Rated for 600V and suitable for wet locations.

Product Highlights

This wire is suitable for industrial and commercial wiring applications, especially where moisture exposure is expected.

Product Information

Standard Information

• Brand: THHNCU-GENERIC
• MPN: THHN10SOLRED500R

Technical Specifications

• Current Rating: 30 Ampere
• Jacket Thickness: 4 MIL
• Insulation Thickness: 20 MIL
• Outer Diameter: 161 MIL
• Certifications: UL (Canada and US)
• Stranding: Solid
• Material: Soft Annealed Copper
• Wire Size: 10 AWG
• Length: 500 feet
• UNSPSC: 26121614
• Type: THHN
• Voltage Rating: 600 V
• Jacket Material: Nylon
• Direct Burial: Yes
• Wet Location Use: Yes
• Insulation Material: PVC
• Temperature Rating: 90 Deg C (Dry), 75 Deg C (Oil/Wet)
