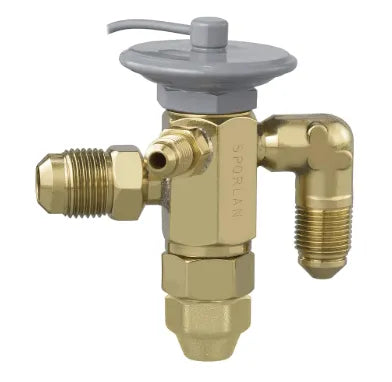

Sporlan FS1/4C Thermostatic Expansion Valve (1/4 Ton) R404A

Product Description

The Sporlan FS1/4C is a thermostatic expansion valve designed for HVAC applications. This unit is suitable for systems using the refrigerant R404A and offers a nominal capacity of a quarter ton. It features a quarter SAE inlet and half SAE outlet, making it compatible with various refrigerant systems.

• Nominal capacity rated at 1/4 tons
• Connections: 1/4 SAE inlet and 1/2 SAE outlet
• Internal equalizer type for optimal performance

Product Highlights

The FS1/4C ensures proper refrigerant flow regulation, essential for maintaining system efficiency. It is commonly used in both residential and commercial HVAC systems, aiding in temperature control and energy conservation.

Product Information

Standard Information

• Manufacturer: Sporlan
• Model Number: FS1/4C

Technical Specifications

• Nominal Capacity: 1/4 Tons
• Connections: 1/4 SAE inlet X 1/2 SAE Outlet
• Refrigerant Type: R404A
• Equalizer Type: Internal
• Weight: 1.25 lbs
