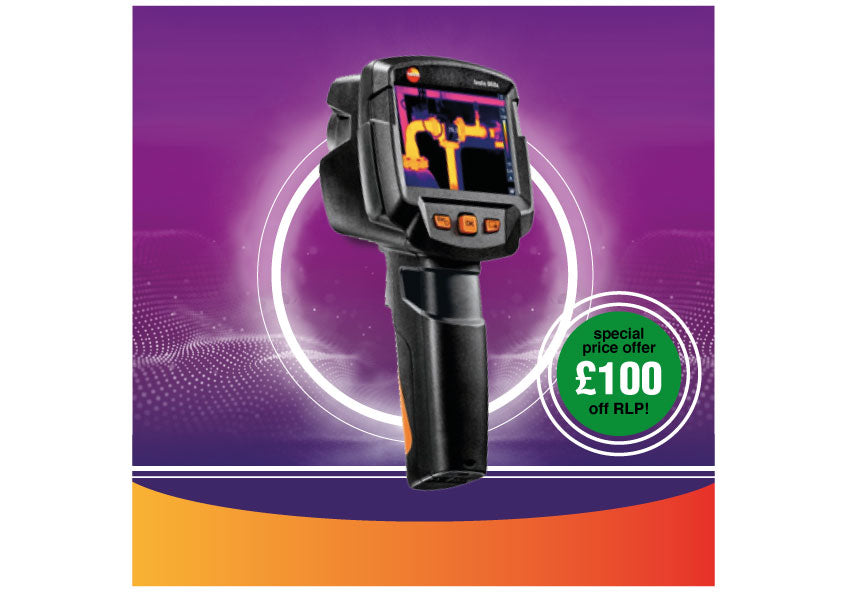

TESTO 5608684 Thermal Imaging Camera 868s

Product Description

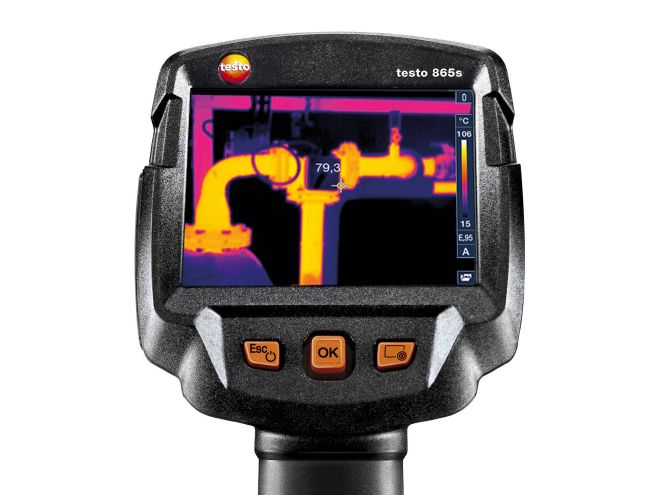

The TESTO 5608684 is a thermal imaging camera designed for various applications in the field of temperature measurement and analysis. This model features an infrared resolution of one hundred sixty by one hundred twenty pixels, which can be increased to three hundred twenty by two hundred forty pixels using SuperResolution technology. It provides a thermal sensitivity of 0.08 degrees Celsius and has capabilities for automatic hot and cold spot detection.

It includes a built-in digital camera that captures a real image alongside the thermal image for comprehensive analysis. Wireless communication is supported via WLAN, making it compatible with the testo Thermography App on mobile devices. Users can save thermal images in JPEG format for reporting and further analysis.

• Integrated digital camera with hot/cold spot recognition.
• WLAN connectivity for easy use with the testo Thermography App.
• Saves thermal images as JPEG files for easy sharing.

Product Highlights

This thermal imaging camera is suitable for professionals in HVAC, electrical, and building inspection fields, facilitating accurate temperature assessments and diagnostics.

Product Information

Standard Information

• Brand: TESTO
• MPN: 5608684

Technical Specifications

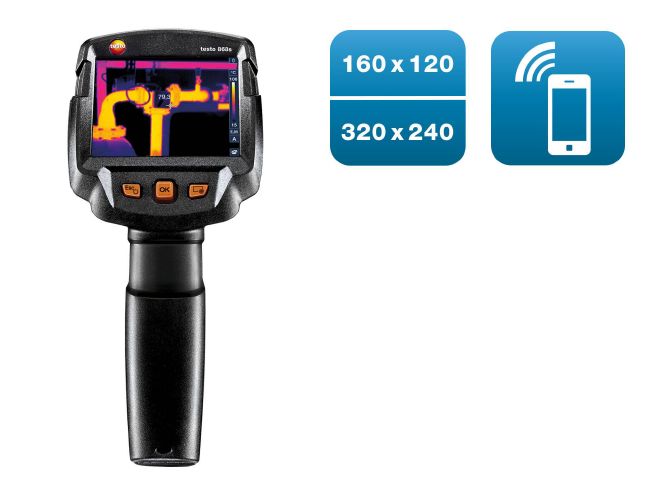

• Infrared resolution: 160 x 120 pixels
• Thermal sensitivity: <0.08 degrees Celsius (80 mK)
• Field of view: 31 degrees x 23 degrees
• Minimum focus distance: <0.5 m
• Geometric resolution (IFOV): 3.4 mrad
• SuperResolution (Pixel): 320 x 240 pixels
• Image refresh rate: 9 Hz
• Display type: 8.9 cm (3.5 inches) TFT, QVGA (320 x 240 pixels)
• Color palettes: 4 (iron, rainbow, cold-hot, grey)
• Measuring range: -30 to +100 degrees Celsius; 0 to +650 degrees Celsius
• Accuracy: ±2 degrees Celsius, ±2% of mv
• Battery type: Fast-charging, Li-ion battery
• Operating time: 4 hours
• Dimensions: 219 x 96 x 95 mm
• Weight: 510 g
