Testo 0563 0009 Smart Probes AC & Refrigeration Test & Load Kit

Product Description

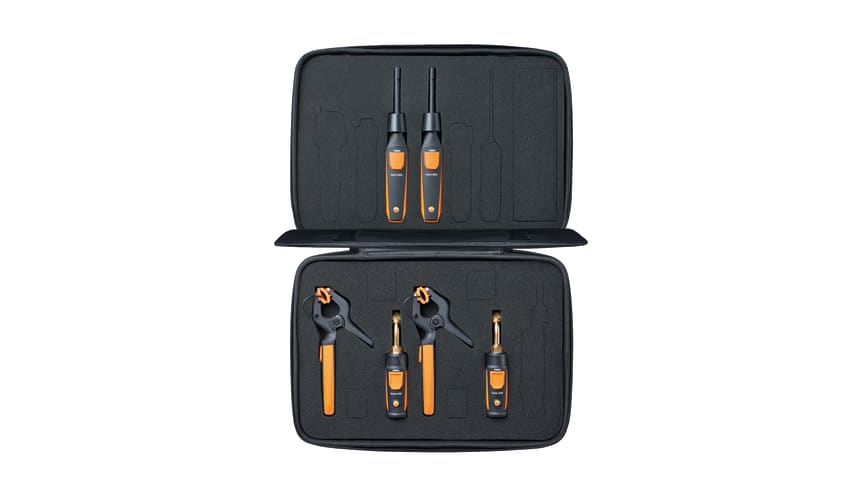

The TESTO 0563 0009 Smart Probes AC & Refrigeration Test & Load Kit is designed for refrigeration engineers. This kit contains two testo 549i high-pressure gauges, two testo 605i thermohygrometers, and two testo 115i clamp thermometers. Used with a smartphone/tablet, it's ideal for servicing, troubleshooting, and installing AC and refrigeration systems.

• High-precision measurement technology with convenient smartphone operation
• 350 ft Bluetooth range for particularly flexible applications
• App for creating on-site reports

Product Highlights

The kit facilitates efficient AC and refrigeration system maintenance with features like automatic superheating/subcooling calculation and emailing measurement data reports.

Product Information

Standard Information

• Brand: TESTO
• Manufacturer Part Number: 0563 0009
• Country of Origin: China

Technical Specifications

• Temperature - NTC Measuring range: -40 to 302 °F / -40 to +150 °C
• Temperature - NTC Accuracy: ±2.3 °F (-4° to 185 °F) / ±1.3 °C (-20 to +85 °C)
• Temperature - NTC Resolution: 0.1 °F / 0.1 °C
• Weight: 4.49 oz. / 127.4 g
• Dimensions: 7 x 4 x 1 in. / 183 x 90 x 30 mm
• Operating temperature: -4° to 122 °F / -20 to +50 °C
• Housing: Plastic
• Battery type: 3 x AAA
• Battery life: 150 h
• Storage temperature: -4° to 140 °F / -20 to +60 °C
• Pressure measurement Measuring range: -15 to +870 psi / -1 to +60 bar
• Pressure measurement Accuracy: ±0.5 % of full-scale value
• Pressure measurement Resolution: 0.01 psi / 0.01 bar
• Probe connection: 7 / 16 in. - UNF
• Overload rel. (high pressure): +943 psi / +65 bar
• Pressure media: CFC, HFC, HCFC, N, H₂O, CO₂
• Humidity - Capacitive Measuring range: 0 to 100 %rH
• Humidity - Capacitive Accuracy: ±5 %rH (< 10 %rH or > 90 %rH) ±3.0 %rH (10 to 35 %rH) (at +77°F) / ±3.0 %RH (10 to 35 %RH) (at +25°C) ±2.0 %rH (35 to 65 %rH) (at +77°F) / ±2.0 %RH (35 to 65 %RH) (at +25°C) ±3.0 %rH (65 to 90 %rH) (at +77°F) / ±3.0 %RH (65 to 90 %RH) (at +25°C)
• Humidity - Capacitive Resolution: 0.1 %rH
• Length probe shaft: 3.937 in. / 100 mm
• Brand: Testo
• Battery Included: Yes
• Battery Life (Hours): 130, 150
• Battery Type: (3) AAA Batteries Each
• Case Material: Plastic
• Maximum Operating Temperature: 122 F (50 C)
• Maximum Temperature Measured: 213 to 392 F (101 to 200 C), 302 F (150 C)
• Minimum Operating Temperature: -4 F (-20 C)
• Minimum Temperature Measured: -40 F (-40 C), -57 to 32 F (-49 to 0 C), 32 to 122 F (0 to 50 C)
• Mobile Device Operating System Compatibility: Android 4.3 or Newer, Mobile End Device with Bluetooth 4.0, iOS 8.3 or Newer
• Operating Humidity Range: 0 to 100% RH

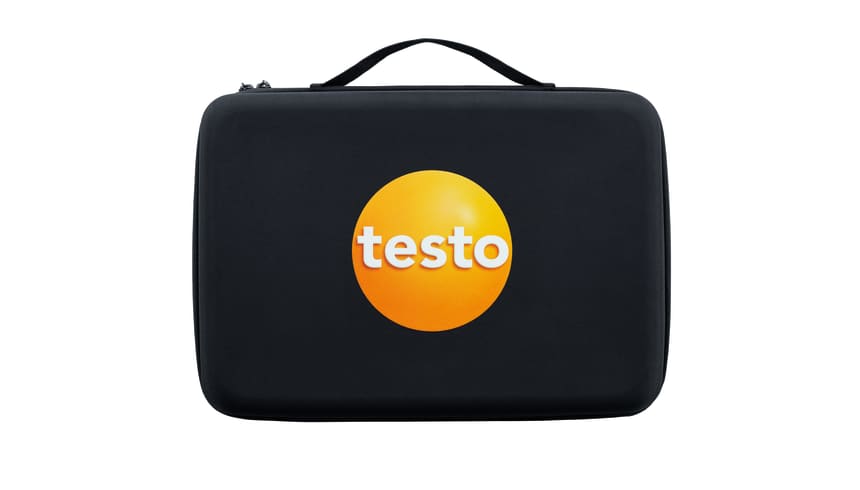

• Package Contents: (1) Certificate of Calibration, (1) Soft Case, (18) AAA Batteries, (2) 115i Pipe Clamp Thermometers, (2) 549i High Pressure Refrigeration Gauges, (2) 605i Thermohygrometers
• Manufacturer: Testo, Inc.
• Temperature Detection Tool Type: Pipe Clamp Thermometers, Thermo-Hygrometers
• Units Measured: Celsius and Fahrenheit, Relative Humidity (RH), Wet Bulb
• Individual/Set: Set
• Item dimensions L x W x H: 43.6 x 33.9 x 9.7 Centimetres
• Item weight: 1.82 kg
• Style: Modern
• Measurement accuracy: ± 0.5 kg
• Measuring range: typically -30°C to 50°C
• Mounting type: Flange Mount
• Output type: digital
• Sensing distance: 3.94 Inches
• Specific uses for product: air conditioning, refrigeration
• Upper Temperature Rating: 140 Degrees Fahrenheit
• Smart Home Compatibility: Not Smart Home Compatible
