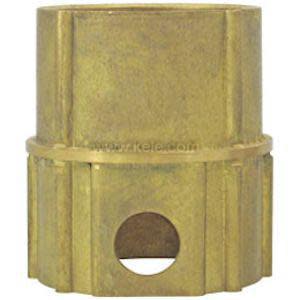

TEKMAR T091 Snow/Ice Sensor Socket

Product Description

The TEKMAR T091 Snow/Ice Sensor Socket is a robust mounting solution for the Snow/Ice Sensors 090 or 094. Made with durable brass and plastic materials, this socket is specifically designed for direct installation into concrete slabs during the pouring process. Once the socket is installed, the sensor can be easily placed into it for effective snow and ice detection.

• Mounting solution for Snow/Ice Sensor 090 or 094
• Direct installation into concrete slabs
• Compatible with tekmar snow melting controls 664, 665, or 667

Product Highlights

The TEKMAR T091 ensures reliable snow and ice condition sensing for efficient management of melting systems.

Product Information

Standard Information

• Agency Approvals: CSA C US with tekmar Snow / Ice Sensor 090, CE
• Material: Brass, Plastic

Technical Specifications

• Operating Temperature: -30 to 170°F (-34 to 77°C)
• Load Rating: 15,000 lb (66,723 N) distributed load, non-impact
• Dimensions: Height 3-13/16 inches, Outer Diameter 3-1/2 inches
• Wiring Terminations: 65 feet (20 m) 18 AWG, 5 conductor
• Weight: Sensor 4.4 lbs. (2 kg), Socket 1.5 lbs. (0.7 kg)
• Depth: 3-1/2 inches
