Product Description

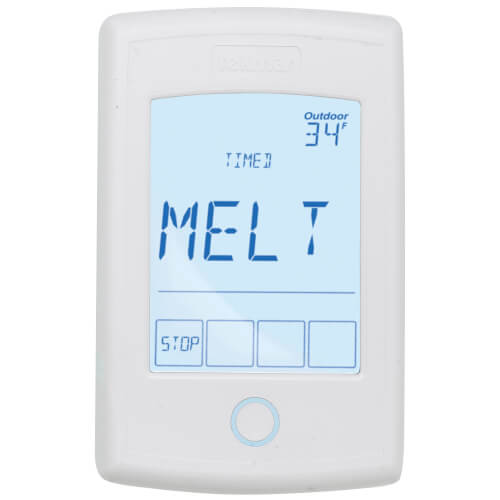

The Tekmar 654 is a snow melting control device that operates with a 24-volt power supply. It is designed for snow and ice removal on surfaces such as driveways, walkways, and parking areas. The control system uses sensors to determine when to start and stop the melting process, which helps in managing energy use effectively.
- Automatic snow and ice detection
- Compatible with electric and hydronic systems
- Programmable timer and manual controls
Product Highlights
This control unit enhances safety by preventing snow ice accumulation on critical surfaces while reducing operating costs.
Product Information
Standard Information
-
Brand: Tekmar Controls
-
MPN: 654
Technical Specifications
-
Power Supply: Class 2, 24 V AC
-
Temperature Range: 32°F to 95°F (Melting)
-
Ambient Conditions: -4 to 122°F, < 90% RH non-condensing
-
Weight: 1.225 lbs
-
Dimensions (Shipping): 11.95 in (D) x 6 in (W) x 2.15 in (H)
-
Features: Automatic snow/ice detection, programmable schedule, manual start with timer, warm weather shutdown
-

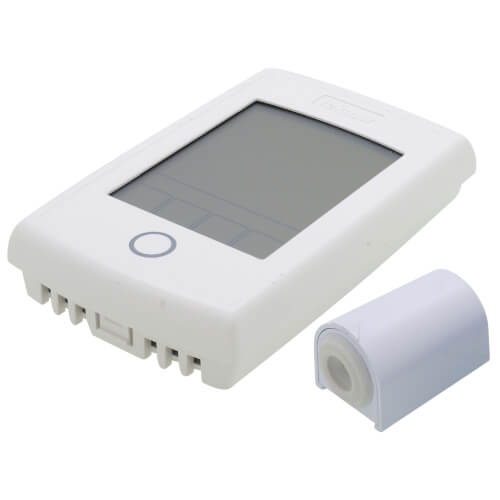

Includes: 070 sensor, 082 sensor
-
Applications: Driveways, walkways, entrances
