Product Description

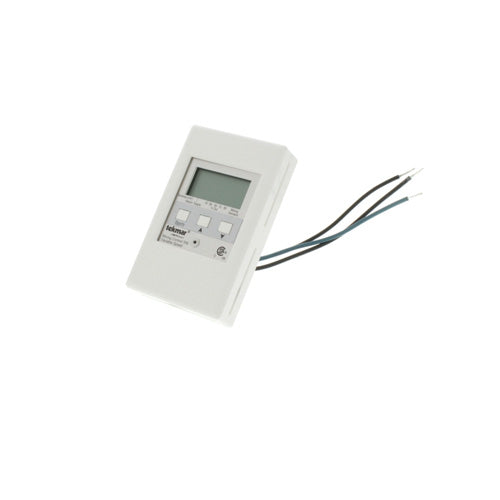

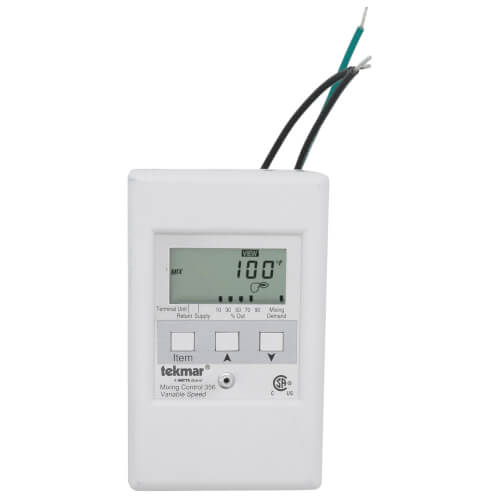

The Tekmar 356 Mixing Control is a microprocessor-based, variable-speed control unit designed to modulate pump operation to adjust heating supply based on outdoor temperature. Ideal for enhancing efficiency in heating systems while ensuring optimal comfort.
- Microprocessor PID control for accurate adjustments

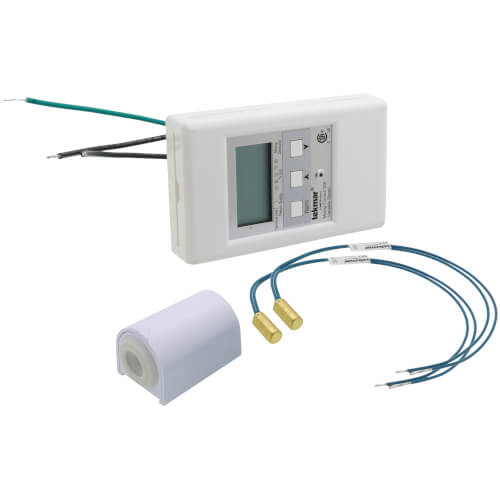

- Includes two Universal Sensor 071 and an Outdoor Sensor 070
- Supports 120V operations with capacity up to 2.4A or 1/6 hp
Product Highlights
This unit is beneficial for maintaining the proper boiler temperature and operation, ensuring energy efficiency and system reliability.
Product Information
Standard Information
Technical Specifications
-
Control Type: Microprocessor-based PID control
-
Power Supply: 24V +10% 50/60 Hz 3 VA
-
Variable Pump: 120 V (ac) 2.4 A 1/6 hp, fuse T2.5 A 250 V
-
Enclosure: Type C, white PVC plastic
-
Dimensions: 4-3/4 inches H x 2-7/8 inches W x 7/8 inch D
-
Approvals: CSA C US, meets ICES & FCC regulations for EMI/RFI
-
Ambient Conditions: Indoor only, 32 to 104 degrees F, less than 90% RH non-condensing
