Product Description

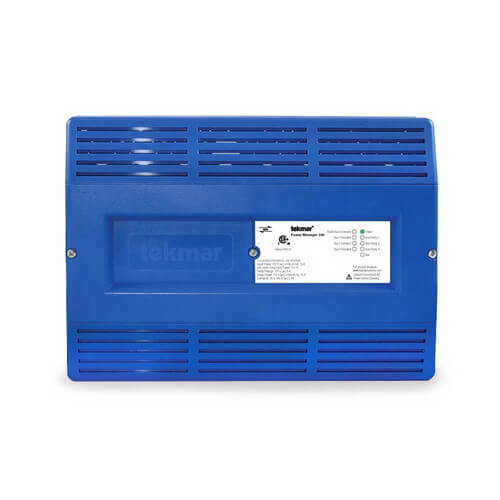

The Tekmar Controls 346 is a power manager designed to integrate non-Tekmar products with a tekmarNet® 4 heating system. It supports systems using third-party thermostats and zoning devices. The unit manages hot water demands effectively, providing inputs for up to four reset water temperatures, which include high temperature and multiple low temperatures. This model features three auxiliary pump outputs, allowing for flexible installation in various heating applications.
- Interfaces with non-Tekmar products
- Supports four demand inputs and three pump outputs
- Internal transformer provides necessary power
Product Highlights
This unit is compatible with tekmarNet® 4 technology. It features easy connections and allows for the switching of pump outputs based on heating needs.
Product Information
Standard Information
-
Brand: Tekmar Controls
-
MPN: 346
Technical Specifications
-
Dimensions: Height eight and one sixteenth inches, Width eleven and one eighth inches, Depth two and fifteen sixteenth inches
-
Weight: 5.18 lbs
-
Power Supply: 115V (ac)
-
Auxiliary Input: 24V (ac) < 0.1 VA
-
Output for Demands: 20 to 260 V (ac) 2 VA
-
Relay Ratings: 115 V (ac) 10 A
-
Power Manager Type: Three Auxiliary Pumps
-
LED User Interface: Yes
