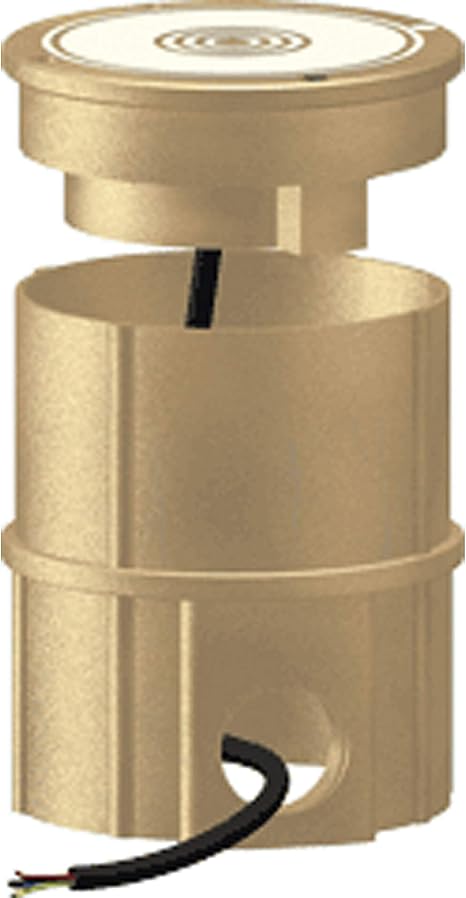

TEKMAR 90 Snow Ice Sensor In-slab 65 FT Wire

Product Description

The TEKMAR 90 Snow/Ice Sensor detects snow and ice on surfaces. This in-slab sensor works with tekmar snow melting controls. It comes with sixty-five feet of wire. The product is suitable for both residential and commercial applications.

• Automatic snow and ice detection
• Slab temperature sensing
• Long wire prevents field splicing

Product Highlights

This sensor enables efficient snow and ice management, automatically activating the snow melting system when conditions require it.

Product Information

Standard Information

• Brand: Tekmar
• Model: 090

Technical Specifications

• Agency Approvals: CSA C US
• Dimensions: 1.75 inches H x 3.4375 inches OD
• Load Rating: 15,000 lb distributed load
• Markets: Commercial buildings, multifamily homes, single-family homes
• Operating Range: -30 to 170 degrees F
• Sensor Material: Silicon brass with polyethylene jacket
• Output Type: Resistance
• Supply Voltage: 24 VAC @ 12 VA
• Wiring Terminations: 65 feet 18 AWG, 5 conductor
• Approvals: CE
• Warranty: 2 years
• Sensor Technology: Contact Sensor
• Manufacturer: J L SALES COMPANY INC
