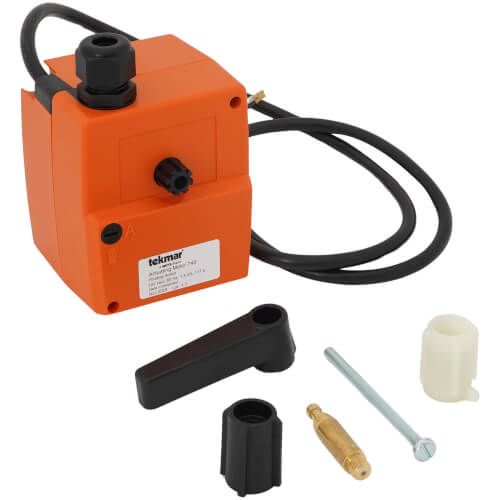

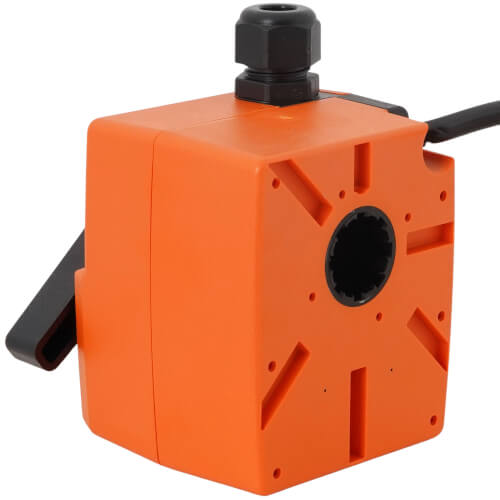

TEKMAR 743 ACTUATING MOTOR for MIXING VALVES REPLACEMENT 741

Product Description

The Tekmar 743 Actuating Motor is engineered for precise and efficient control in HVAC systems. This 24V actuator ensures seamless operation of Tekmar brass mixing valves ranging from models 710 to 724. Featuring a robust torque of 10 N.m (88 lb-in), it completes a 90-degree rotation, accommodating any control setup with a 24V AC floating output.

• Designed specifically for HVAC applications, enhancing system functionality.
• Provides a notable torque of 10 N.m (88 lb-in) for reliable valve operation.
• Seamless compatibility with 24V AC floating control systems.

Product Highlights

Its compact build and electrical limitation to 90 degrees of shaft rotation ensures a controlled and efficient operational capacity.

Technical Specifications

• Power Supply: 24 V (ac) ± 10%, 60 Hz, 1.5 VA
• Weight: 1.17 pounds
• Dimensions: 4.5 inches depth, 4.25 inches width, 4.25 inches height
• Operational Torque: 10 N.m (88 lb-in)
• Rotation: Electrically limited to 90° shaft rotation
• Application: Suitable for indoor use only
• Compatibility: Fits all Tekmar brass mixing valves (models 710 to 724)
