Product Description

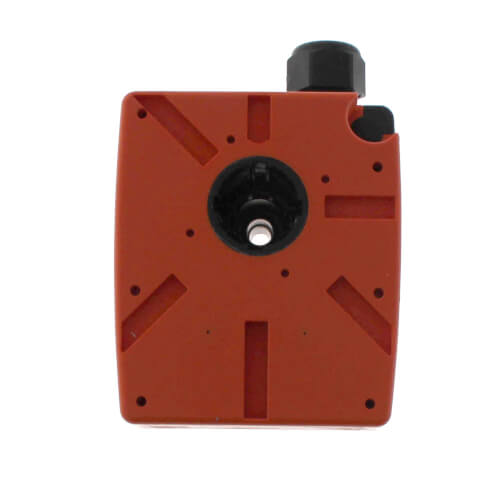

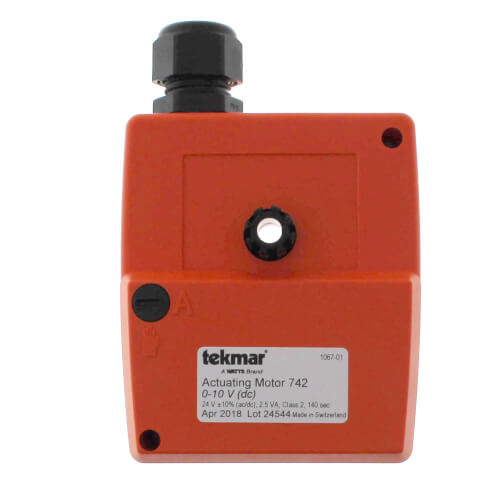

The Tekmar 742 Actuating Motor operates with a 0-10V signal to adjust the mixing valve position. Designed for compatibility with Tekmar brass mixing valves 710 to 724, this motor provides efficient control over your heating system.
- 0-10V signal compatibility
- 88 in-lbs of torque
- Manual and automatic control
Product Highlights
The Tekmar 742 Actuating Motor delivers precise control for brass mixing valves. Ideal for indoor use, it provides reliable performance in controlling water temperature with a 0-10V signal.
Product Information
Standard Information
-
Brand: Tekmar
-
MPN: 742
-
Category: Heating Supplies & Parts
-
Subcategory: Mixing Valves
Technical Specifications
-
Enclosure: Polycarbonate, NEMA type 1
-
Ambient Conditions: Indoor use only, 32 to 122°F (0 to 50°C), 95% RH non-condensing
-
Power Supply: 24V ±10% (AC/DC), 2.5 VA, Class 2
-
Control Signal Input: 0-10V (DC) or 2-10V (DC), selected by switch setting, 100 kΩ maximum input impedance
-
Position Signal Output: 0-10V (DC) or 2-10V (DC), follows switch setting, 3 kΩ minimum load impedance
-
Angle of Rotation: Electrically limited to 90° shaft rotation, clockwise or counterclockwise direction selected by switch setting
-
Motor Speed: 140 seconds
-
Rated Torque: 88 in-lbs (10 N·m)
