Product Description

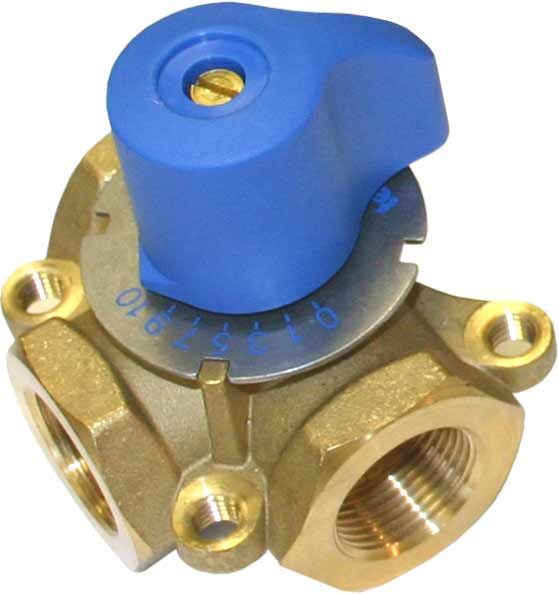

The Tekmar Mixing Valve 710 is a three-way valve designed for controlling water flow in hydronic heating systems. This valve mixes supply water from a heat source with returning water for efficient heating. It features a size of three-fourths inch and is made from durable brass.
- 3-way mixing valve for hydronic systems
- Standard female NPT threads
- Manual valve position setting available
Product Highlights
This mixing valve allows for a maximum leak-through rate of 1% to accommodate water expansion during temperature fluctuations. It can be operated manually or automatically with an actuating motor.
Product Information
Standard Information
-
Brand: Tekmar
-
Product Type: 3-Way
-
Material: Brass
-
Shipping Weight: 3.000 lbs
-
Size: 3/4 inch
Technical Specifications
-
Maximum Operating Pressure: 146 psi
-
Operating Temperature Range: -20 to 248 F
-
Body Material: CW 617N - EN 12165 Brass
-
Main Seal: EPDM Peroxide O-ring
-
Fluid Compatibility: Chilled and hot water with antifreeze and anticorrosive compounds (max 60%)
