Description

Product Description

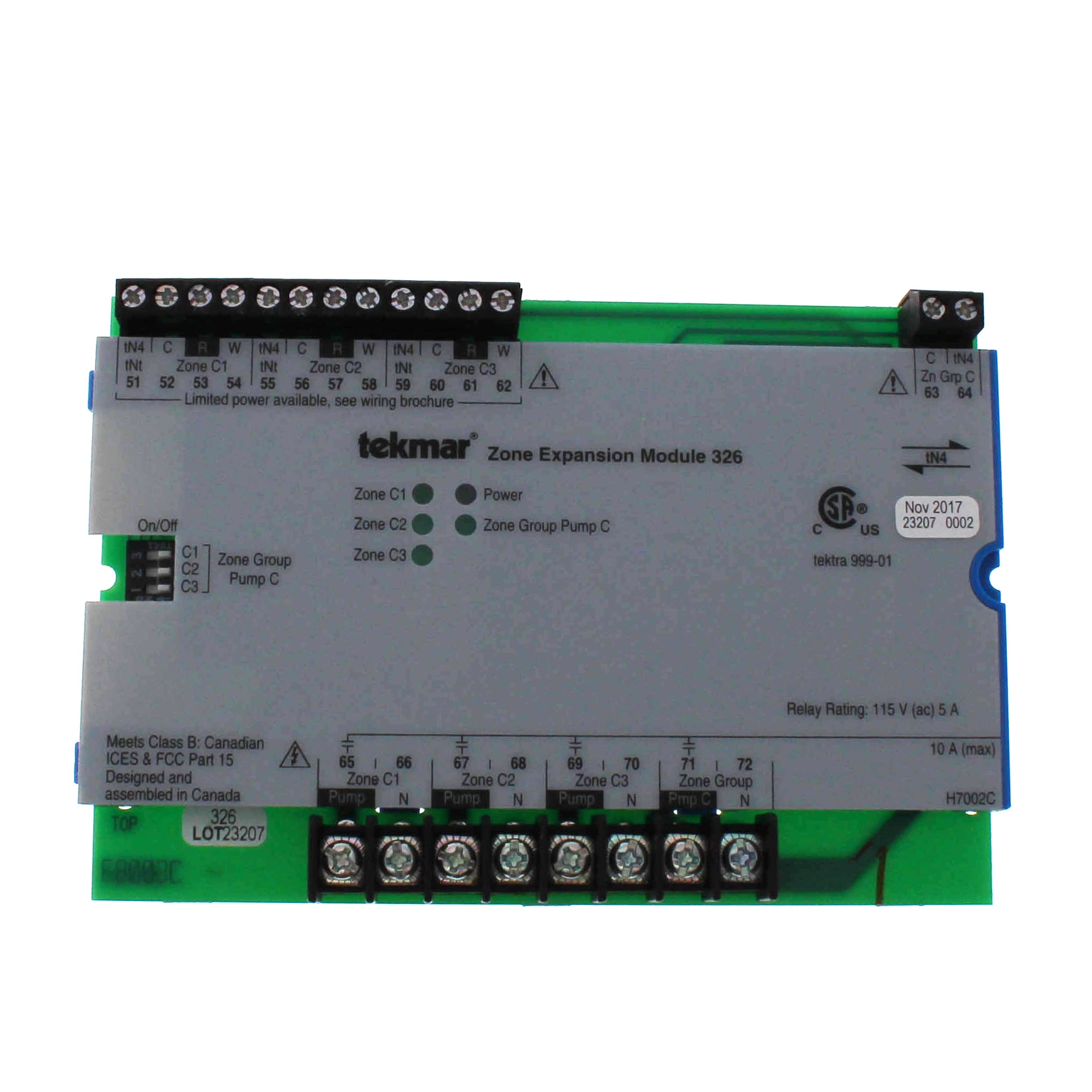

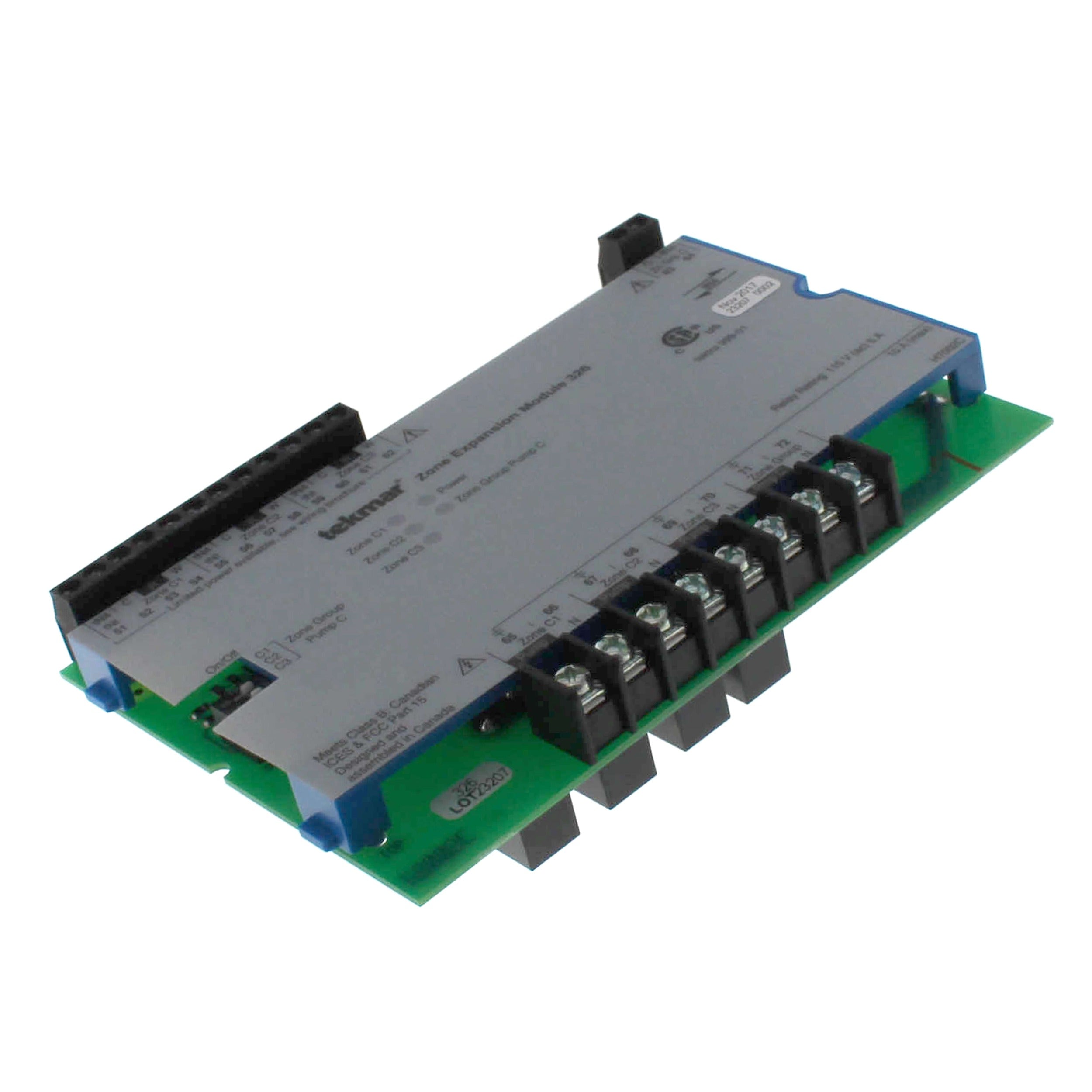

The Tekmar 326 Zone Expansion Module provides power and relay control for tekmarNet+4 thermostats and up to three zone pumps using microprocessor PID control. The indoor module supplies three 115 V AC zone pump outputs plus one 115 V AC zone group pump output, with combined relay load limited to 10 A. Power is supplied by the interconnected Zone Manager and the unit includes a DIP switch user interface.

  • Three 115 V AC zone pump relays and one 115 V AC zone group pump relay; each relay rated 115 V AC, 5 A, 1/4 hp, pilot duty 240 VA
  • Microprocessor PID control (not a safety/limit control); power supplied by interconnected Zone Manager; combined relay load 10 A maximum
  • Compact indoor module: 3-5/8" H x 5-3/8" W x 9/16" D; packaged weight 1.15 lb (522 g); CSA C US and CSA/UL 61010-1 approvals

Product Highlights

Expands tekmarNet 4 zoning with three powered 115 V pump outputs and one zone group pump output; compact indoor module with PID control and CSA/UL approvals.

Product Information

Standard Information

  • Brand: TEKMAR
  • Manufacturer Part Number: 326
Technical Specifications
Brand
Tekmar
MPN
326
Model
Zone Expansion Manager 326
Function
Provides power and relay control for tekmarNet+4 thermostats and zone pumps
Control Type
Microprocessor PID control (not a safety/limit control)
Compatibility
tekmarNet 4 compatible; works with tekmarNet+4 thermostats
Power Supply
Provided by interconnected Zone Manager
Outputs
Three 115 V AC powered zone pump outputs; One 115 V AC powered zone group pump output
Relay Output Rating (per relay)
115 V AC, 5 A, 1/4 hp, pilot duty 240 VA
Combined Relay Load
10 A Maximum
User Interface
DIP Switch
Dimensions
3-5/8" H x 5-3/8" W x 9/16" D (92 x 137 x 14 mm)
Weight
1.07 lb
Packaged Weight
1.15 lb (522 g)
Ambient Conditions
Indoor use only; 32 to 122 F (0 to 50 C); relative humidity <=80% up to 88 F (31 C), down to 50% from 104 to 122 F (40 to 50 C); altitude <2000 m
Approvals
CSA C US; CSA/UL 61010-1; meets Class B: ICES and FCC Part 15
Application
Zoning (hydronic heating, baseboard zones, radiant manifolds)
Installation Category
Installation Category II
Pollution Degree
Pollution Degree 2
Ordering Code
326
UPC
779655032604
Manufacturer
Tekmar
